BAS69-07P6FILM
ActiveSTMicroelectronics

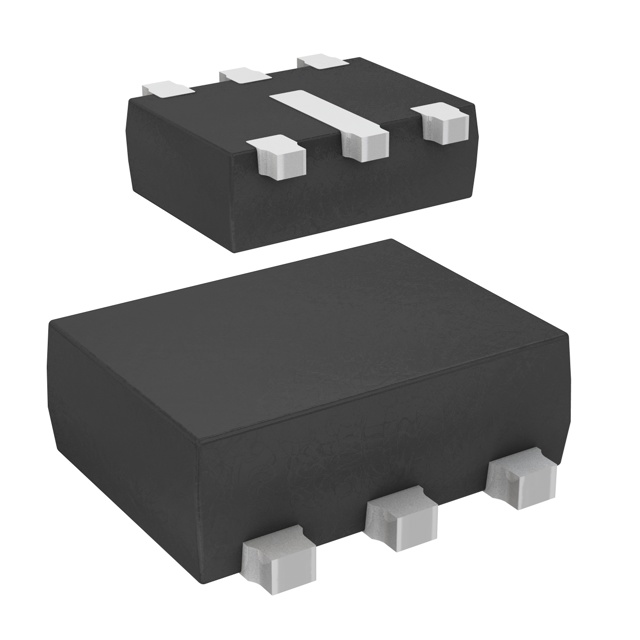

DIODE ARR SCHOTT 15V 10MA SOT666
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BAS69-07P6FILM
ActiveSTMicroelectronics
DIODE ARR SCHOTT 15V 10MA SOT666
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BAS69-07P6FILM | BAS69 Series |
|---|---|---|
| Capacitance @ Vr, F | - | 1 pF |
| Current - Average Rectified (Io) | - | 10 mA |
| Current - Average Rectified (Io) (per Diode) | 10 mA | 10 mA |
| Current - Reverse Leakage @ Vr | 230 nA | 230 nA |
| Diode Configuration | 2 Independent | 2 Independent |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction | 150 °C | 150 °C |
| Package / Case | SOT-666, SOT-563 | SC-70, SOT-323, SOT-666, SOT-563, SC-79, SOD-523 |
| Speed | Any Speed | Any Speed |
| Speed | 200 mA | 200 mA |
| Supplier Device Package | SOT-666 | SOT-323, SOT-666, SOD-523 |
| Technology | Schottky | Schottky |
| Voltage - Forward (Vf) (Max) @ If | 570 mV | 570 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BAS69 Series
DIODE SCHOTTKY 15V 10MA SOT323
| Part | Speed | Speed | Current - Average Rectified (Io) | Capacitance @ Vr, F | Technology | Mounting Type | Operating Temperature - Junction | Package / Case | Voltage - Forward (Vf) (Max) @ If | Supplier Device Package | Current - Reverse Leakage @ Vr | Current - Average Rectified (Io) (per Diode) | Diode Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics BAS69WFILM | Any Speed | 200 mA | 10 mA | 1 pF | Schottky | Surface Mount | 150 °C | SC-70, SOT-323 | 570 mV | SOT-323 | 230 nA | ||
STMicroelectronics BAS69-07P6FILM | Any Speed | 200 mA | Schottky | Surface Mount | 150 °C | SOT-563, SOT-666 | 570 mV | SOT-666 | 230 nA | 10 mA | 2 Independent | ||
STMicroelectronics BAS69-09P6FILM | Any Speed | 200 mA | Schottky | Surface Mount | 150 °C | SOT-563, SOT-666 | 570 mV | SOT-666 | 230 nA | 10 mA | 2 Independent | ||
STMicroelectronics BAS69KFILM | Any Speed | 200 mA | 10 mA | 1 pF | Schottky | Surface Mount | 150 °C | SC-79, SOD-523 | 570 mV | SOD-523 | 230 nA |
Description
General part information
BAS69 Series
Diode Array 2 Independent 15 V 10mA (DC) Surface Mount SOT-563, SOT-666
