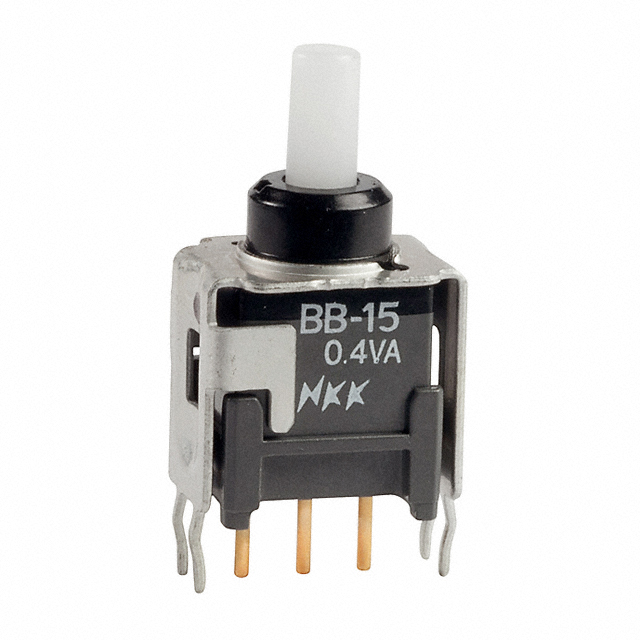

BB15AB/328

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Current Rating (Amps)	Actuator Marking	Voltage Rating - AC	Electrical Life	Type	Circuit	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Color - Actuator/Cap	Mounting Type	Features	Termination Style
NKK Switches BB15AB-FA	On-Mom	0.4 VA	No Marking	28 V	50000 Cycles	Standard	SPDT	28 V	-30 ░C	85 °C	Button Round	Black	Through Hole	Antistatic	PC Pin
NKK Switches BB15AB-FB	On-Mom	0.4 VA	No Marking	28 V	50000 Cycles	Standard	SPDT	28 V	-30 ░C	85 °C	Button Round	White	Through Hole	Antistatic	PC Pin
NKK Switches BB15AB/328-HA	On-Mom	0.4 VA	No Marking	28 V	50000 Cycles	Standard	SPDT	28 V	-30 ░C	85 °C	Button Round	Black	Through Hole		PC Pin
NKK Switches BB15AB/328	On-Mom	0.4 VA	No Marking	28 V	50000 Cycles	Standard	SPDT	28 V	-30 ░C	85 °C	Plunger for Cap	White	Through Hole		PC Pin
NKK Switches BB15AB1	On-Mom	0.4 VA	No Marking	28 V	50000 Cycles	Standard	SPDT	28 V	-30 ░C	85 °C	Plunger for Cap	White	Through Hole	Antistatic	PC Pin
NKK Switches BB15AB-FC	On-Mom	0.4 VA	No Marking	28 V	50000 Cycles	Standard	SPDT	28 V	-30 ░C	85 °C	Button Round	Red	Through Hole	Antistatic	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole
