STEVAL-ISA121V1
ActiveWIDE RANGE SINGLE-OUTPUT DEMONSTRATION BOARD BASED ON THE VIPER37LE
Deep-Dive with AI
Search across all available documentation for this part.
STEVAL-ISA121V1
ActiveWIDE RANGE SINGLE-OUTPUT DEMONSTRATION BOARD BASED ON THE VIPER37LE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ISA121V1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 3 A |
| Frequency - Switching | 115 kHz |
| Main Purpose | Primary Side, AC/DC |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Power - Output | 15 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Utilized IC / Part | VIPer37 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 128.39 | |
Description
General part information
STEVAL-ISA121V1 Series

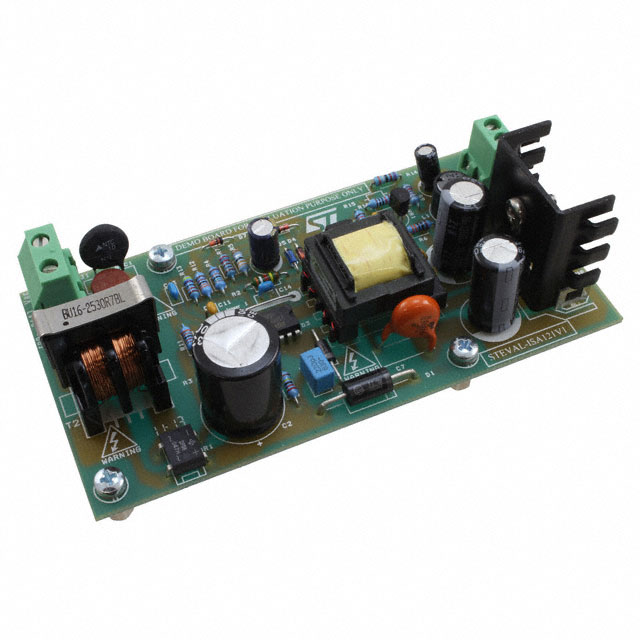

The STEVAL-ISA121V1 demonstration board implements a 15 W single-output wide range mains power supply to be used as an auxiliary adapter in applications such as LCD, plasma or LED TVs, desktop computers, etc., when the main power supply is OFF or in standby mode and the auxiliary power supply must provide energy only to some specific parts of the equipment such as USB ports, remote receiver, etc.
The board uses the new VIPER37LE, an offline high voltage converter from the VIPerPlus family, specifically designed for fixed frequency flyback converters, which combines a high-performance low voltage PWM controller chip and a max. 4.5 Ω RDS(on), 800 V BV(DSS), avalanche-rugged power MOSFET in the same package.
The application is optimized for less than 30 mW standby consumption and meets EPA 2.0 limits, thereby helping to meet the most stringent energy-saving requirements.
