| Accessory Type | - | Hood, Strain Relief, Solder Tag, Sleeve |
| Adapter Series | BNC to BNC, Dual | BNC to UHF, Mini, BNC to Euro, BNC to BNC, Dual, SMA to UHF Mini, N to UHF, Mini, N to F, BNC to FME, TNC to TNC, SMA to SMA, F to F, BNC to SMA, SMA to TNC, SMA to FME, F to Euro, UHF to FME, N to TNC |
| Adapter Type | Jack to Jack | Plug to Jack, Jack to Jack, Plug to Plug |
| Body Finish | Nickel | Nickel, Gold, Tin |
| Body Material | Brass | Brass, Polyvinyl Chloride (PVC), Zinc Alloy, Steel, Zinc |
| Center Contact Material | Brass | Brass, Beryllium Copper, Phosphor Bronze, Copper |
| Center Contact Plating | Gold | Gold, Nickel, Tin |
| Center Gender | Female to Female | Female to Female, Male to Male |
| Color | - | Blue, Gray, Red, Silver, Yellow, Violet, Green |
| Connector Style | - | SMA, BNC, F Type, N Type, UHF, Euro, TNC, SMB, Mini |
| Connector Type | - | Female Socket, Jack, Male Pin, Plug |
| Contact Finish | - | Gold |
| Contact Material | - | Brass |
| Contact Termination | - | Solder, Solder Cup, Screw |
| Conversion Type | Same Series | Between Series, Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket | BNC Plug, Male Pin, Euro Jack, Female Socket, BNC Jack, SMA Jack, N Jack, F Plug, Male Pin, TNC Jack, Female Socket, SMA Plug, Male Pin, F Jack, UHF Plug, Male Pin, N Plug, Male Pin |
| Convert To (Adapter End) | BNC Jack, Female Socket (2) | UHF Mini Jack, Female Socket, BNC Jack, Female Socket (2), Male Pin, UHF Mini Plug, N Jack, FME Plug, TNC Jack, SMA Jack, F Jack, N Plug, UHF Jack, UHF Plug, F Plug |
| Dielectric Material | Polyoxymethylene (POM) Acetal | Polyoxymethylene (POM), Polyoxymethylene (POM) Acetal, Polypropylene (PP), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock | Bayonet Lock, Threaded, Push-Pull, Snap-On |
| Features | - | Mounting Hardware, Board Guide, Isolated, Filter |
| For Use With/Related Products | - | 62, RG-59, F Type Connectors, 142 Series |
| Frequency - Max [Max] | 4 GHz | 1 - 300 GHz |
| Housing Color | - | Silver, Gold, White |
| Impedance | 50 Ohms | 50 - 93 Ohms |
| Impedance | - | Non-Constant |
| Impedance | - | 60 Ohms |
| Impedance | - | 75 Ohms |
| Includes | - | Connector, Washer, Nut, 1 Nut, 1 Solder Tag, 1 Connector, 1 Lockwasher, 2 Screws, 2 Lockwashers, 2 Nuts |
| Insertion Loss | 0.2 dB | 0.2 dB |
| Mating Cycles | 500 | 200 - 500 |
| Mounting Feature | - | Flange, Bulkhead - Front or Rear Side Nut, Bulkhead - Rear Side Nut, Bulkhead, Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Free Hanging, Cap, Right Angle, Through Hole, Right Angle, Through Hole, Panel Mount |
| Number of Ports | - | 1 - 2 |
| Operating Temperature [Max] | 165 °C | 80 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -40 °C |
| Shield Termination | - | Solder, Solder Tag |

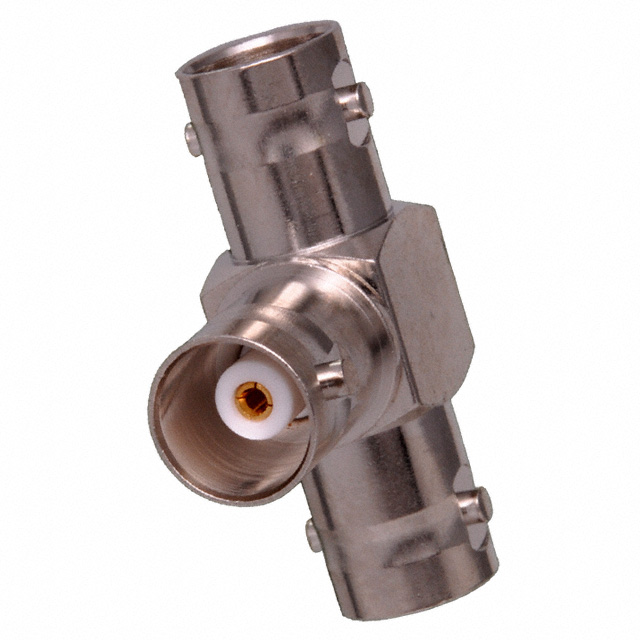

| Style | T-Shape | Straight, T-Shape, Right Angle, U-Shape |
| Type | - | Terminal, Screw, Barrier Block |
| Voltage Rating | - | 250 - 500 V |
