2036-3-57-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

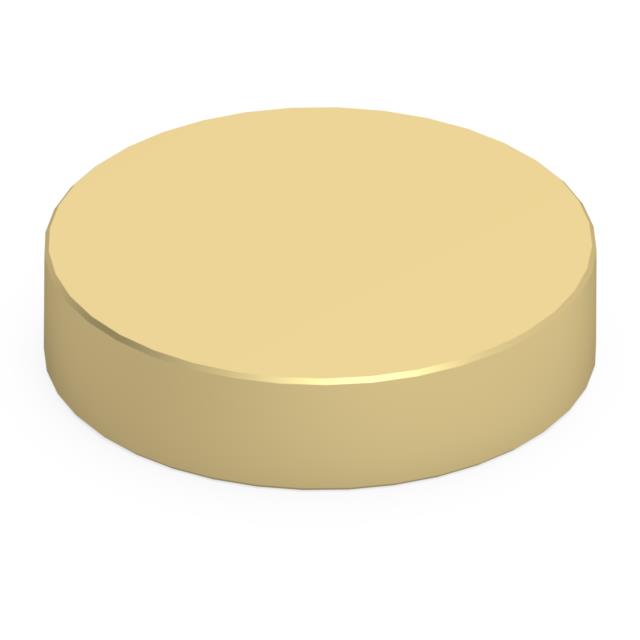

6MM DIAMETER TARGET DISC
Deep-Dive with AI
Search across all available documentation for this part.
2036-3-57-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
6MM DIAMETER TARGET DISC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2036-3-57-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Contact Type | Contact Pad |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 5.99 mm |
| Pad Layout Dimension [diameter] | 0.236 in |
| Pad Layout Dimension [z] | 1.4 mm |
| Pad Layout Dimension [z] | 0.055 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.96 | |
| 10 | $ 0.81 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.59 | |||
| Digi-Reel® | 1 | $ 0.96 | ||
| 10 | $ 0.81 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.59 | |||
| Tape & Reel (TR) | 2825 | $ 0.54 | ||
| 5650 | $ 0.52 | |||
| 8475 | $ 0.50 | |||
| 14125 | $ 0.49 | |||
| 19775 | $ 0.47 | |||
Description
General part information
2036-3 Series
Contact Spring Surface Mount
Documents
Technical documentation and resources
No documents available
