HN3A51F(TE85L,F)

Obsolete

Toshiba Semiconductor and Storage

TRANS 2PNP 120V 0.1A SM6

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

TRANS 2PNP 120V 0.1A SM6

Technical Specifications

Parameters and characteristics for this part

Specification	HN3A51F(TE85L,F)

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	200 hFE
Frequency - Transition	100 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C

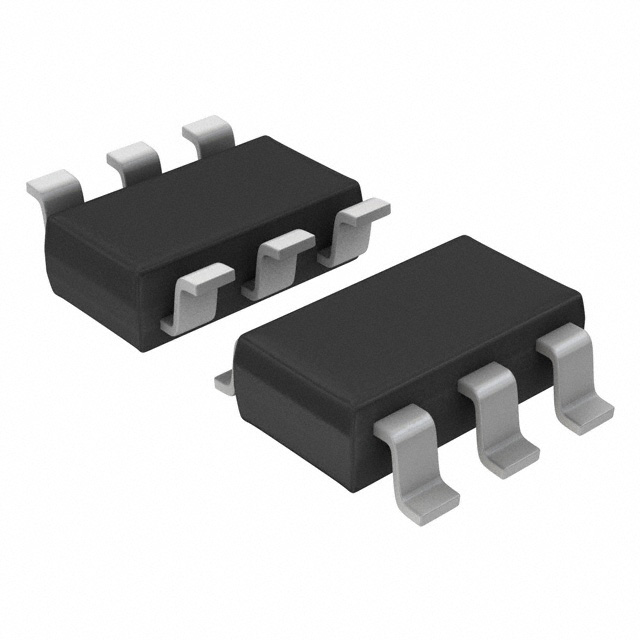

Package / Case	SC-74, SOT-457
Power - Max [Max]	300 mW
Supplier Device Package	SM6
Transistor Type	2 PNP (Dual)
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max)	120 V

Part	Current - Collector Cutoff (Max) [Max]	Mounting Type	Transistor Type	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Vce Saturation (Max) @ Ib, Ic	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Operating Temperature
Toshiba Semiconductor and Storage HN3A51F(TE85L,F)	100 nA	Surface Mount	2 PNP (Dual)	SC-74 SOT-457	120 V	300 mV	SM6	200 hFE	100 MHz	100 mA	300 mW	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor Array 2 PNP (Dual) 120V 100mA 100MHz 300mW Surface Mount SM6
