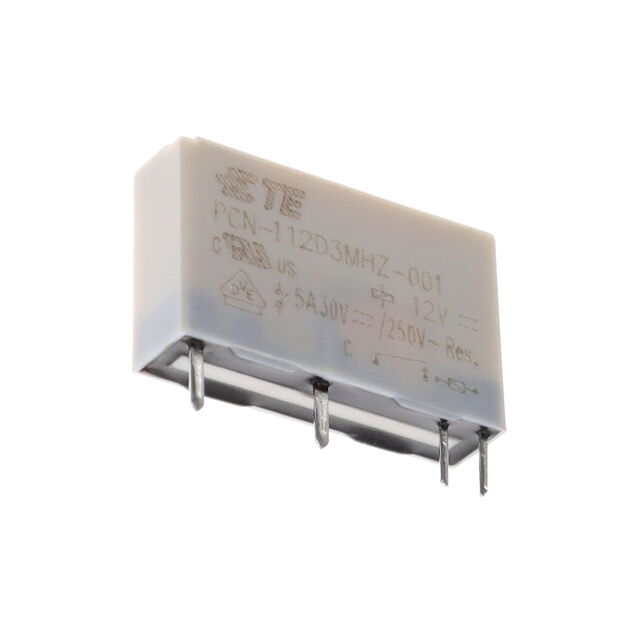

PCN-112D3MHZ,001B
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 5A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCN-112D3MHZ,001B |
|---|---|
| Approval Agency | CQC, VDE, cURus |
| Coil Current | 10 mA |
| Coil Insulation | Class F |
| Coil Resistance | 1.2 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A |
| Load - Max Switching | 625 W, 1385 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 277 VAC, 125 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.48 | |
| 10 | $ 5.14 | |||
| 25 | $ 4.57 | |||
| 50 | $ 4.34 | |||
| 100 | $ 4.11 | |||
| 250 | $ 3.65 | |||
| 800 | $ 3.42 | |||
| 1600 | $ 3.20 | |||
Description
General part information
PCN-112 Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
