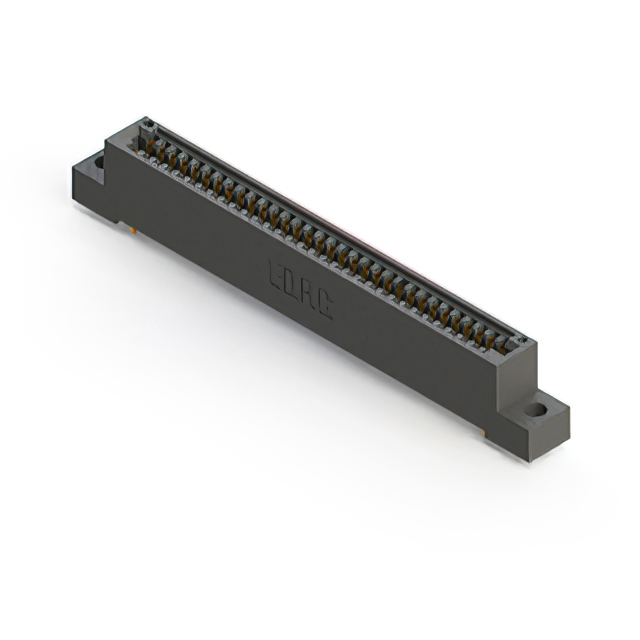

895-064-542-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 64POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-064-542-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 64POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-064-542-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 64 |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
895-064 Series
...
| Part | Pitch [x] | Pitch [x] | Mounting Type | Read Out | Contact Material | Termination Rows | Contact Type | Material - Insulation | Gender | Card Type | Number of Positions/Bay/Row [custom] | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Color | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | Through Hole | Single | Copper Alloy | 1 | Cantilever | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 64 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 64 | 1 | 125 °C | -40 °C | |||
EDAC Inc. | 2.54 mm | 0.1 in | Through Hole | Single | Copper Alloy | 1 | Cantilever | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 64 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 64 | 1 | 125 °C | -40 °C | |||||
EDAC Inc. | 2.54 mm | 0.1 in | Board Edge Straddle Mount | Dual | Copper Alloy | 2 | Cantilever | Polyphenylene Sulfide (PPS) | Female | Non Specified - Dual Edge | 32 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 64 | 2 | 125 °C | -40 °C | 3.25 mm | 0.128 in | Card Extender | ||
EDAC Inc. | 2.54 mm | 0.1 in | Through Hole | Dual | Copper Alloy | 2 | Cantilever | Polyphenylene Sulfide (PPS) | Female | Non Specified - Dual Edge | 32 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 64 | 2 | 125 °C | -40 °C | |||
EDAC Inc. | 2.54 mm | 0.1 in | Through Hole | Dual | Copper Alloy | 2 | Cantilever | Polyphenylene Sulfide (PPS) | Female | Non Specified - Dual Edge | 32 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 64 | 2 | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2.54 mm | 0.1 in | Through Hole | Dual | Copper Alloy | 2 | Cantilever | Polyphenylene Sulfide (PPS) | Female | Non Specified - Dual Edge | 32 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | 64 | 2 | 125 °C | -40 °C | |||
EDAC Inc. | 2.54 mm | 0.1 in | Through Hole | Single | Copper Alloy | 1 | Cantilever | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 64 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 64 | 1 | 125 °C | -40 °C | |||||
EDAC Inc. | 2.54 mm | 0.1 in | Through Hole Right Angle | Single | Copper Alloy | 1 | Cantilever | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 64 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 2.95 mm | 0.116 in | Floating Bobbin Top Mount Opening | 10 Áin | 0.25 Ám | 64 | 1 | 125 °C | -40 °C | |||
EDAC Inc. | 2.54 mm | 0.1 in | Through Hole | Single | Copper Alloy | 1 | Cantilever | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 64 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 64 | 1 | 125 °C | -40 °C | |||
EDAC Inc. | 2.54 mm | 0.1 in | Through Hole | Dual | Copper Alloy | 2 | Cantilever | Polyphenylene Sulfide (PPS) | Female | Non Specified - Dual Edge | 32 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Black | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | 64 | 2 | 125 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-064 Series
64 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
