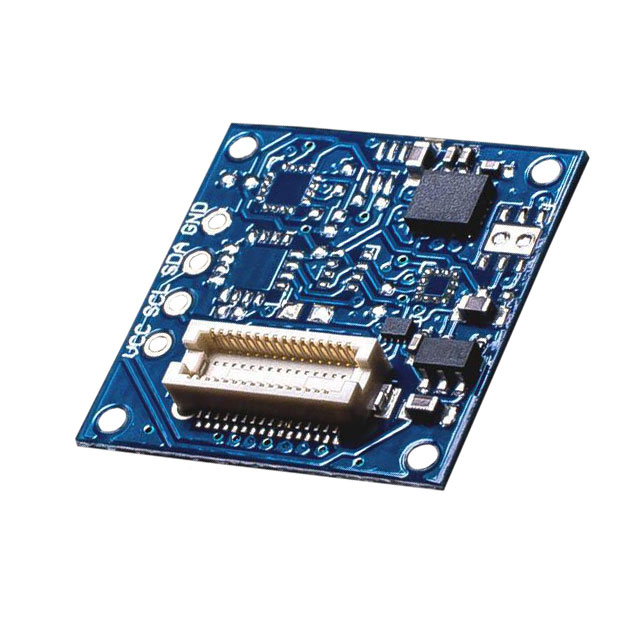

ASD2511-R-N

Active

TinyCircuits

9-AXISTINYSHIELD

Search across all available documentation for this part.

Active

TinyCircuits

9-AXISTINYSHIELD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.95

General part information

LSM9DS1 Accelerometer, Gyroscope, Magnetometer Sensor TinyDuino Platform Evaluation Expansion Board

Technical documentation and resources

Part	Contents	Platform	Type	Utilized IC / Part	Function
TinyCircuits ASD2511-R-N	Board(s)	TinyDuino	Sensor	LSM9DS1	Accelerometer, Gyroscope, Magnetometer
TinyCircuits ASD2511-R-P	Board(s)	TinyDuino	Sensor	BMP280	Pressure
TinyCircuits ASD2511-R-T	Board(s)	TinyDuino	Sensor	Si7020	Humidity, Temperature
TinyCircuits ASD2511-R-N-T-P-L	Board(s)	TinyDuino	Sensor	BMP280, LSM9DS1, Si7020-A10, TSL2572	Accelerometer, Gyroscope, Humidity, Light, Pressure, Temperature
TinyCircuits ASD2511-R-C	Board(s)	TinyDuino	Sensor		Compass
TinyCircuits ASD2511-R-A	Board(s)	TinyDuino	Sensor	BMA250	Accelerometer
TinyCircuits ASD2511-R-L	Board(s)	TinyDuino	Sensor		Light
