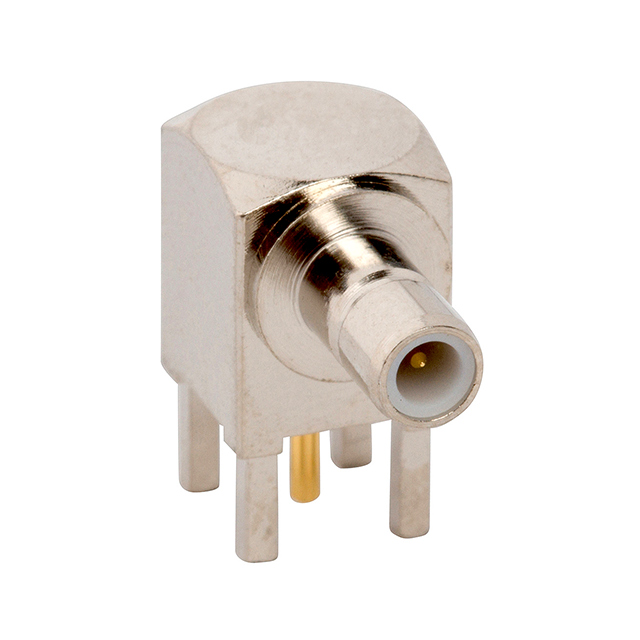

SMB PCB THROUGH HOLE RIGHT ANGLE JACK 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

142144

Active

Amphenol RF

SMB PCB THROUGH HOLE RIGHT ANGLE JACK 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	142144

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

1421 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Connector Type	Cable Group	Shield Termination	Frequency - Max [Max]	Connector Style	Fastening Type	Mating Cycles	Contact Termination	Insertion Loss	Voltage Rating	Number of Ports	Impedance	Includes	Center Contact Material	Housing Color	Center Contact Plating	Dielectric Material	Body Finish	Body Material	Includes	Mounting Type
Amphenol RF 142111	165 °C	-55 °C	Bulkhead - Front Side Nut	Jack Male Pin	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Crimp	4 GHz	SMZ (Type 43)	Snap-On	500	Solder	0.3 dB	335 V	1	75 Ohms	1 pcs 1 1 pcs 1 pcs 1 1 pcs 2 pcs	Brass	Gold	Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass
Amphenol RF 142195	165 °C	-65 ░C		Female Socket Plug	178A 178B 196 196A M17/93-RG178 RG-178	Crimp	4 GHz	SMB	Snap-On	500	Solder	0.6 dB	335 V	1	50 Ohms		Beryllium Copper	Gold	Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink	Free Hanging (In-Line) Right Angle
Amphenol RF 142166	165 °C	-65 ░C	Flange	Male Pin Receptacle		Solder	4 GHz	SMB	Snap-On	500	Solder Cup	0.3 dB	335 V	1	50 Ohms		Brass	Gold	Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass
Amphenol RF 142183	165 °C	-65 ░C		Female Socket Plug	188 316 Double Braid M17/152-RD316 RG-179	Crimp	4 GHz	SMB	Snap-On	500	Solder	0.3 dB	335 V	1	50 Ohms		Phosphor Bronze	Silver	Gold	Polytetrafluoroethylene (PTFE)	Nickel	Brass		Free Hanging (In-Line)
Amphenol RF 142101	165 °C	-65 ░C		Female Socket Plug	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Crimp	4 GHz	SMZ (Type 43)	Snap-On	500	Solder	0.3 dB	335 V	1	75 Ohms		Beryllium Copper	Gold	Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass		Free Hanging (In-Line)
Amphenol RF 142150	165 °C	-65 ░C	Bulkhead - Rear Side Nut	Jack Male Pin		Solder	4 GHz	SMB	Snap-On	500	Solder Cup	0.3 dB	335 V	1	50 Ohms		Brass	Gold	Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass	1 Connector 1 Lockwasher 1 Nut
Amphenol RF 142144	165 °C	-65 ░C		Jack Male Pin		Solder	4 GHz	SMB	Snap-On	500	Solder	0.6 dB	335 V	1	50 Ohms		Brass	Silver	Gold	Polytetrafluoroethylene (PTFE)	Nickel	Brass		Through Hole Right Angle
Amphenol RF 142194	165 °C	-65 ░C		Female Socket Plug	188 188A 316 LMR-100 M17/119-RG174 RG-174	Crimp	4 GHz	SMB	Snap-On	500	Solder	0.6 dB	335 V	1	50 Ohms		Beryllium Copper	Gold	Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink	Free Hanging (In-Line) Right Angle
Amphenol RF 142182	165 °C	-65 ░C		Jack Male Pin	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Crimp	4 GHz	SMB	Snap-On	500	Crimp	0.3 dB	335 V	1	50 Ohms		Brass	Silver	Gold	Polytetrafluoroethylene (PTFE)	Nickel	Brass		Free Hanging (In-Line)
Amphenol RF 142136	165 °C	-65 ░C		Male Pin Receptacle		Solder	4 GHz	SMB	Snap-On	500	Solder	0.3 dB	335 V	1	50 Ohms		Brass	Silver	Gold	Polytetrafluoroethylene (PTFE)	Nickel	Brass		Through Hole
