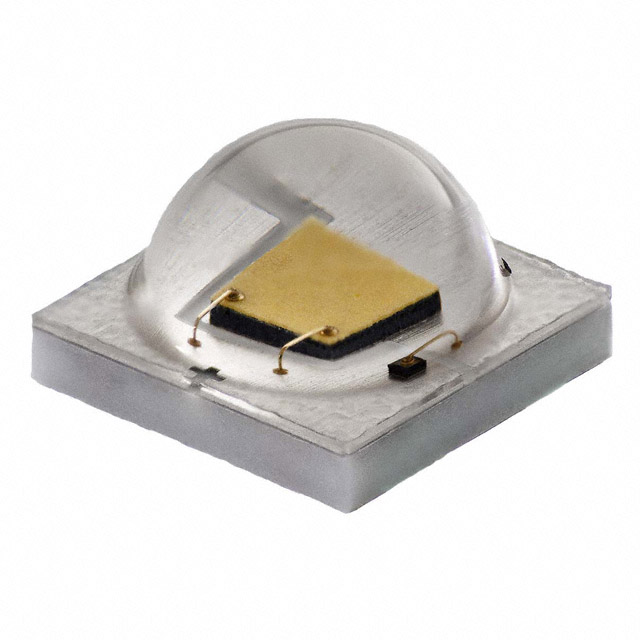

XPEBWT-L1-0000-00CA1

Active

Cree LED

LED XLAMP COOL WHITE 5000K 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPEBWT-L1-0000-00CA1

Active

Cree LED

LED XLAMP COOL WHITE 5000K 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XPEBWT-L1-0000-00CA1	XPEBWT Series

CCT (K)	5000 K	2200 - 6500 K
Color	Cool, White	White, Warm, Neutral, Cool
CRI (Color Rendering Index)	-	70 - 90
Current - Max [Max]	1 A	1 - 1.5 A
Current - Test	350 mA	350 mA
Flux @ 85°C, Current - Test	104 lm	65 - 160
Flux @ 85°C, Current - Test [Max]	107 lm	62 - 156 lm
Flux @ 85°C, Current - Test [Min]	100 lm	57 - 148 lm
Height - Seated (Max) [Max] [z]	2.39 mm	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "	0.094 "
Lumens/Watt @ Current - Test	102 lm/W	58 - 161 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	-	1414
Thermal Resistance of Package	-	5.8 °C/W
Thermal Resistance of Package [diameter]	9 °C/W	9 - 10 °C/W
Viewing Angle	110 °	110 °
Voltage - Forward (Vf) (Typ)	2.9 V	2.84 - 2.9 V

XPEBWT Series

LED XLAMP WARM WHITE 2700K 2SMD

...

Part	Thermal Resistance of Package [diameter]	Viewing Angle	Color	CCT (K)	CRI (Color Rendering Index)	Current - Max [Max]	Current - Test	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Flux @ 85°C, Current - Test	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Thermal Resistance of Package [custom]	Supplier Device Package
Cree LED XPEBWT-H1-0000-009E8	9 °C/W	110 °	Warm, White	2700 K	80	1 A	350 mA	2.9 V	83 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	3535 Metric	1414	84	Surface Mount	2.39 mm	0.094 "
Cree LED XPEBWT-H1-R250-00AZ6	9 °C/W	110 °	Warm, White	3500 K	80	1 A	350 mA	2.9 V	90 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	3535 Metric	1414	91 lm	Surface Mount	2.39 mm	0.094 "	94 lm	87 lm
Cree LED XPEBWT-U1-0000-009E7	9 °C/W	110 °	Warm, White		90	1 A	350 mA	2.9 V	83 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	3535 Metric	1414	84	Surface Mount	2.39 mm	0.094 "
Cree LED XPEBWT-01-0000-00GF6		110 °	Neutral, White	3750 K	70	1.5 A	350 mA	2.84 V	136 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	3535 Metric	1414		Surface Mount	2.39 mm	0.094 "	139 lm	130 lm	5.8 °C/W	1414
Cree LED XPEBWT-L1-R250-00CA7	9 °C/W	110 °	Warm, White	3250 K		1 A	350 mA	2.9 V	102 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	3535 Metric	1414	104 lm	Surface Mount	2.39 mm	0.094 "	107 lm	100 lm
Cree LED XPEBWT-L1-R250-00EF4	9 °C/W	110 °	Neutral, White	4750 K		1 A	350 mA	2.9 V	116 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	3535 Metric	1414	118 lm	Surface Mount	2.39 mm	0.094 "	122 lm	114 lm
Cree LED XPEBWT-P1-0000-007E8	9 °C/W	110 °	Warm, White	2700 K	85	1 A	350 mA	2.9 V	70 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	3535 Metric	1414	71 lm	Surface Mount	2.39 mm	0.094 "	74 lm	57 lm
Cree LED XPEBWT-H1-0000-00CZ7	9 °C/W	110 °	Warm, White		80	1 A	350 mA	2.9 V	102 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	3535 Metric	1414	104 lm	Surface Mount	2.39 mm	0.094 "	107 lm	100 lm
Cree LED XPEBWT-L1-0000-006ZA	9 °C/W	110 °	White			1 A	350 mA	2.9 V	64 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	3535 Metric	1414	65 lm	Surface Mount	2.39 mm	0.094 "	67 lm	62 lm
Cree LED XPEBWT-L1-0000-00CA1	9 °C/W	110 °	Cool, White	5000 K		1 A	350 mA	2.9 V	102 lm/W	3.45 mm	0.136 in	0.136 in	3.45 mm	3535 Metric	1414	104 lm	Surface Mount	2.39 mm	0.094 "	107 lm	100 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.75

Description

General part information

XPEBWT Series

LED Lighting XLamp® XP-E2 White, Cool 5000K 2.9V 350mA 110° 1414 (3535 Metric)
