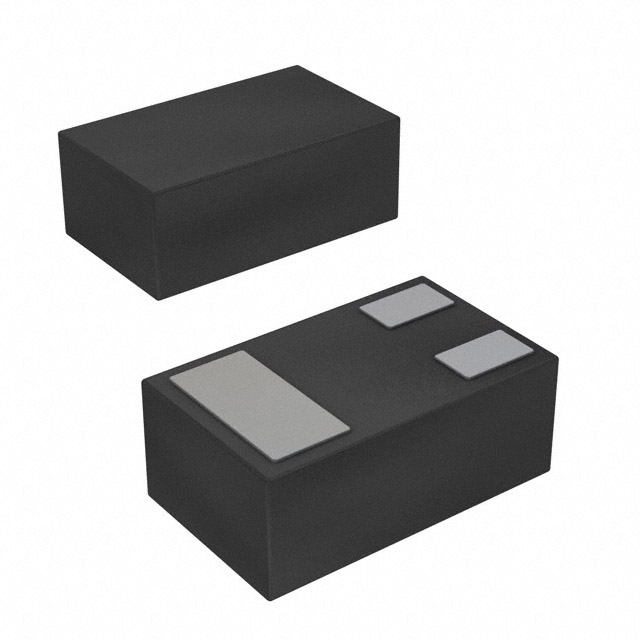

DZ36068D0L
UnknownPanasonic Industrial Automation Sales
DIODE ZENER ARRAY 6.8V ML3N4-B
Deep-Dive with AI
Search across all available documentation for this part.
DZ36068D0L
UnknownPanasonic Industrial Automation Sales
DIODE ZENER ARRAY 6.8V ML3N4-B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DZ36068D0L |
|---|---|
| Configuration | 1 Pair Common Anode |
| Current - Reverse Leakage @ Vr | 100 nA |
| Impedance (Max) (Zzt) [Max] | 30 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | SOT-883, SC-101 |
| Power - Max [Max] | 200 mW |
| Supplier Device Package | ML3-N4-B |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
| Voltage - Zener (Nom) (Vz) | 6.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10000 | $ 0.04 | |
| 30000 | $ 0.04 | |||
| 50000 | $ 0.04 | |||
| 100000 | $ 0.03 | |||
| 250000 | $ 0.03 | |||
Description
General part information
DZ3606 Series
Zener Diode Array 1 Pair Common Anode 6.8 V 200 mW ±5% ML3-N4-B
