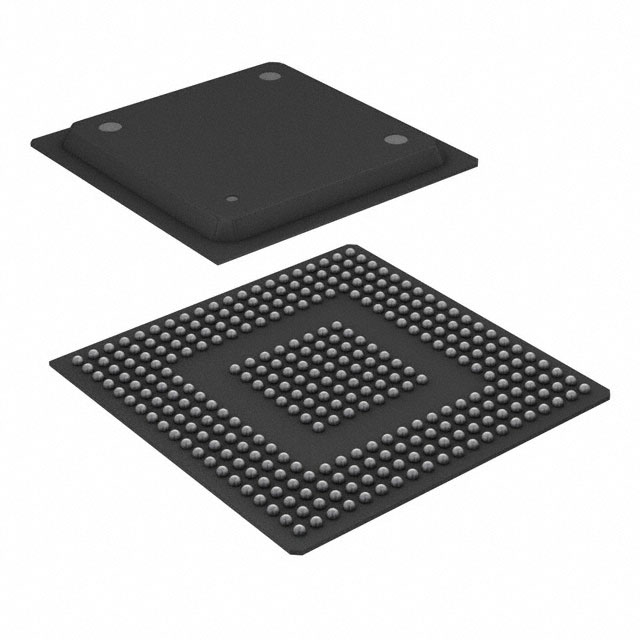

MB91F469QAHPB-GSK6E1

Active

Infineon Technologies

IC MCU 32B 2.0625MB FLSH 320PBGA

Search across all available documentation for this part.

Active

Infineon Technologies

IC MCU 32B 2.0625MB FLSH 320PBGA

Technical Specifications

Parameters and characteristics for this part

Specification	MB91F469QAHPB-GSK6E1

Connectivity	I2C, UART/USART, LINbus, EBI/EMI, CANbus
Core Processor	FR60 RISC
Core Size	32-Bit Single-Core
Data Converters [custom]	40
Data Converters [custom]	10 b
Mounting Type	Surface Mount
Number of I/O	205
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External
Package / Case	320-BBGA
Peripherals	WDT, DMA, LVD, PWM
Program Memory Size	2.0625 MB
Program Memory Type	FLASH
RAM Size	112 K
Speed	100 MHz
Supplier Device Package	320-PBGA (27x27)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3 V

Part	Connectivity	Program Memory Size	Peripherals	Program Memory Type	Supplier Device Package	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Mounting Type	Package / Case	RAM Size	Speed	Core Processor	Data Converters [custom]	Data Converters [custom]
Infineon Technologies MB91F469QAHPB-GSK6E1	CANbus EBI/EMI I2C LINbus UART/USART	2.0625 MB	DMA LVD PWM WDT	FLASH	320-PBGA (27x27)	External	5.5 V	3 V	205	105 °C	-40 °C	32-Bit Single-Core	Surface Mount	320-BBGA	112 K	100 MHz	FR60 RISC	40	10 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 45.08

General part information

FR60 RISC FR MB91460Q Microcontroller IC 32-Bit Single-Core 100MHz 2.0625MB (2.0625M x 8) FLASH 320-PBGA (27x27)
