DEMOBOARDTLE83862ELTOBO1
ActiveDEMONSTRATION BOARD, BOOST CONTROLLER ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DEMOBOARDTLE83862ELTOBO1
ActiveDEMONSTRATION BOARD, BOOST CONTROLLER ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DEMOBOARDTLE83862ELTOBO1 |
|---|---|
| Board Type | Fully Populated |
| Main Purpose | DC/DC, Step Up |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Boost |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TLE8386-2EL |
| Voltage - Output | 27 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DEMOBOARDTLE83862 Series

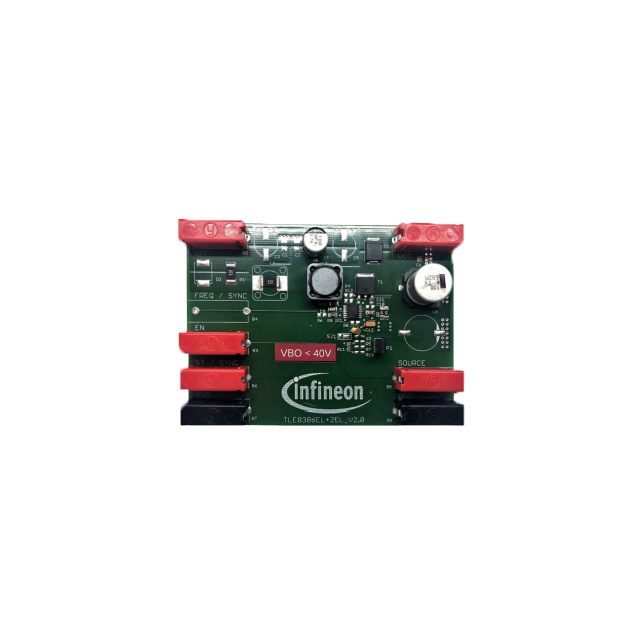

This application board enables you to test the performance of theTLE8386-2ELpower controller. OPTIREG™ SwitcherTLE8386-2ELis a multi-topology low-side controller, designed for harsh automotive environment. The board is optimized for boost mode and offers some flexibility in design and option for cold cranking support where Input voltage could drop below 6V on Vin terminal.
Documents
Technical documentation and resources
