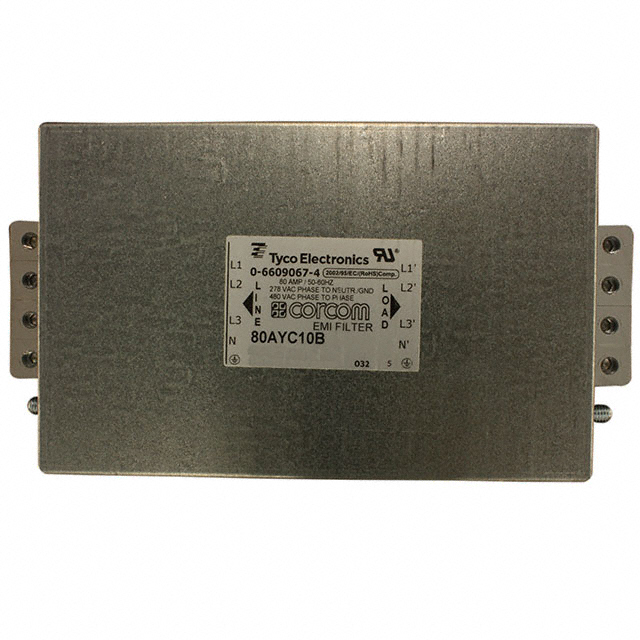

80AYC10B

Active

TE Connectivity Corcom Filters

LINE FILTER 80A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 80A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	80AYC10B

Applications	General Purpose
Configuration	Single Stage
Current	80 A
Filter Type	Three Phase (Wye)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Phase)	480 V

LINE FILTER 80A CHASSIS MOUNT

Part	Mounting Type	Applications	Termination Style	Filter Type	Configuration	Voltage - Rated AC (Phase to Phase)	Current	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Operating [Max]	Frequency - Operating [Min]
TE Connectivity Corcom Filters 80AYC10B	Chassis Mount	General Purpose	Terminal Block	Three Phase (Wye)	Single Stage	480 V	80 A	-10 °C	40 °C	60 Hz	50 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Wye) EMC/EMI Line Filter 80 A 50/60Hz Single Stage Terminal Block
