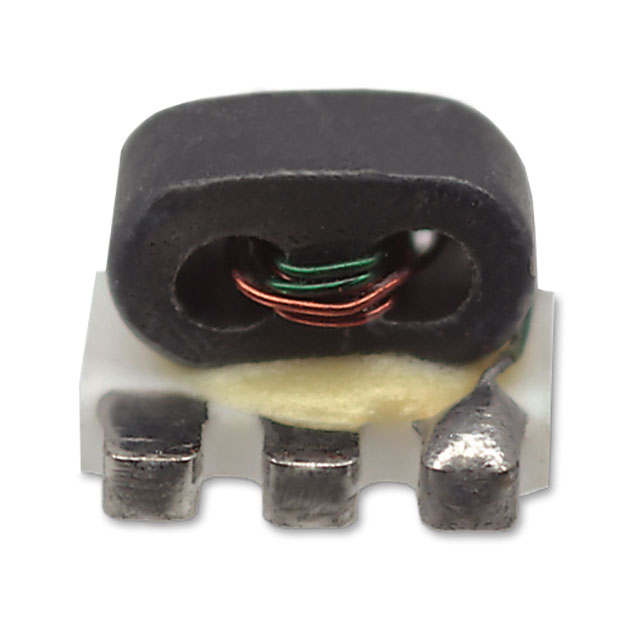

MABA-007569-ETK42T
ActiveMACOM Technology Solutions
TRANSFORMER, RF 1:4, STEP-UP, 2-
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MABA-007569-ETK42T |
|---|---|
| Frequency Range [Max] | 1 GHz |
| Frequency Range [Min] | 2 MHz |
| Impedance - Unbalanced/Balanced | 1:4 |
| Insertion Loss (Max) | 4 dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Phase Difference | 20 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.13 | |
| 10 | $ 2.54 | |||
| 25 | $ 2.05 | |||
| 50 | $ 1.92 | |||
| 100 | $ 1.84 | |||
| 250 | $ 1.78 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.68 | |||
| Digi-Reel® | 1 | $ 3.13 | ||
| 10 | $ 2.54 | |||
| 25 | $ 2.05 | |||
| 50 | $ 1.92 | |||
| 100 | $ 1.84 | |||
| 250 | $ 1.78 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.68 | |||
| Tape & Reel (TR) | 2000 | $ 1.68 | ||
| 6000 | $ 1.54 | |||
Description
General part information
MABA-007569 Series
RF Balun 2MHz ~ 1GHz 1:4 6-SMD (5 Leads), Flat Lead
