Technical Specifications
Parameters and characteristics for this part
| Specification | EVL80WLED-STCH03 |
|---|---|
| Current - Output / Channel [custom] | 1 A |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Supplied Contents | Board(s) |
| Utilized IC / Part | STCH03 |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output [Max] | 80 VDC |
| Voltage - Output [Min] | 40 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVL80WLED-STCH03 Series

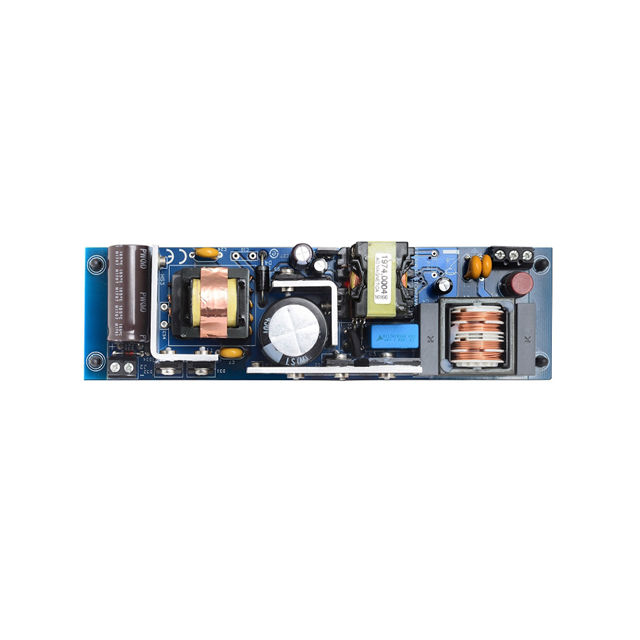

The EVL80WLED-STCH03 demonstration board implements a wide range 80 W - LED driver for street lighting applications with a primary current sensing control loop.
The LED driver is a fixed current source with a very fast start-up time, protections to short-circuit and to open load. The board is optimized to supply an LED string load in the range from 40 V to 80V with a fixed 1 A current source with a very low current ripple.
Due to current primary side STCH03 control loop, the output stage is composed of a simple diode rectification and the output capacitor.
