1053221-1

Active

TE Connectivity AMP Connectors

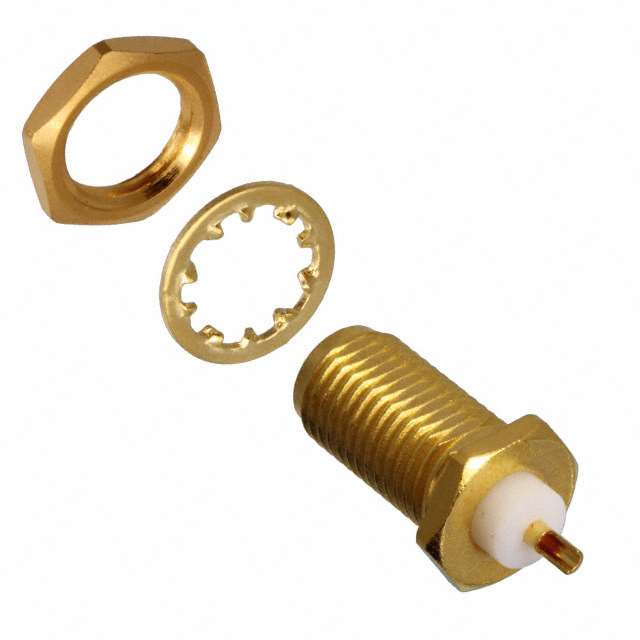

CONN SMA RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMA RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1053221-1

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN SMA RCPT STR 50 OHM SOLDER

Part	Dielectric Material	Body Material	Impedance	Frequency - Max [Max]	Connector Type	Housing Color	Body Finish	Center Contact Material	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Voltage Rating	Number of Ports	Contact Termination	Mating Cycles	Connector Style	Shield Termination	Features	Mounting Feature
TE Connectivity AMP Connectors 1053221-1	Polytetrafluoroethylene (PTFE)	Stainless Steel	50 Ohms	18 GHz	Female Socket, Receptacle	Gold	Gold	Beryllium Copper	Gold	125 °C	-65 ░C	1 Connector, 1 Lockwasher, 1 Nut	335 V	1	Solder	500	SMA	Solder	Extended Insulation	Bulkhead - Front or Rear Side Nut

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
