STTH4R02

Active

STMicroelectronics

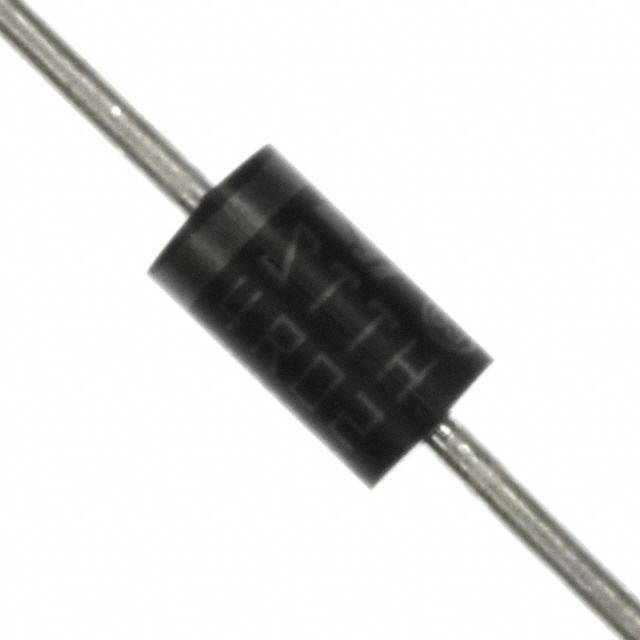

DIODE GEN PURP 200V 4A DO201AB

Search across all available documentation for this part.

Active

STMicroelectronics

DIODE GEN PURP 200V 4A DO201AB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	STTH4R02	STTH4R02 Series

Current - Average Rectified (Io)	4 A	4 A
Current - Reverse Leakage @ Vr	3 µA	3 µA
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature - Junction [Max]	175 °C	175 °C
Package / Case	DO-201AB, Axial, DO-32	DO-201AB, Axial, DO-32, SC-63, DPAK (2 Leads + Tab), TO-252-3, SMC, DO-214AB, SMB, DO-214AA, TO-220-2
Reverse Recovery Time (trr)	30 ns	30 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	DO-201AB	DO-201AB, DPAK, SMC, SMB, TO-220AC
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V	200 V
Voltage - Forward (Vf) (Max) @ If	1.05 V	1.05 V

DIODE GEN PURP 200V 4A DO201AB

Part	Package / Case	Supplier Device Package	Speed	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If
STMicroelectronics STTH4R02	Axial, DO-201AB, DO-32	DO-201AB	200 mA, 500 ns	30 ns	175 °C	200 V	Through Hole	Standard	3 µA	4 A	1.05 V
STMicroelectronics STTH4R02B-TR	DPAK (2 Leads + Tab), SC-63, TO-252-3	DPAK	200 mA, 500 ns	30 ns	175 °C	200 V	Surface Mount	Standard	3 µA	4 A	1.05 V
STMicroelectronics STTH4R02S	DO-214AB, SMC	SMC	200 mA, 500 ns	30 ns	175 °C	200 V	Surface Mount	Standard	3 µA	4 A	1.05 V
STMicroelectronics STTH4R02U	DO-214AA, SMB	SMB	200 mA, 500 ns	30 ns	175 °C	200 V	Surface Mount	Standard	3 µA	4 A	1.05 V
STMicroelectronics STTH4R02D	TO-220-2	TO-220AC	200 mA, 500 ns	30 ns	175 °C	200 V	Through Hole	Standard	3 µA	4 A	1.05 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 200 V 4A Through Hole DO-201AB
