STTH4R02S

Active

STMicroelectronics

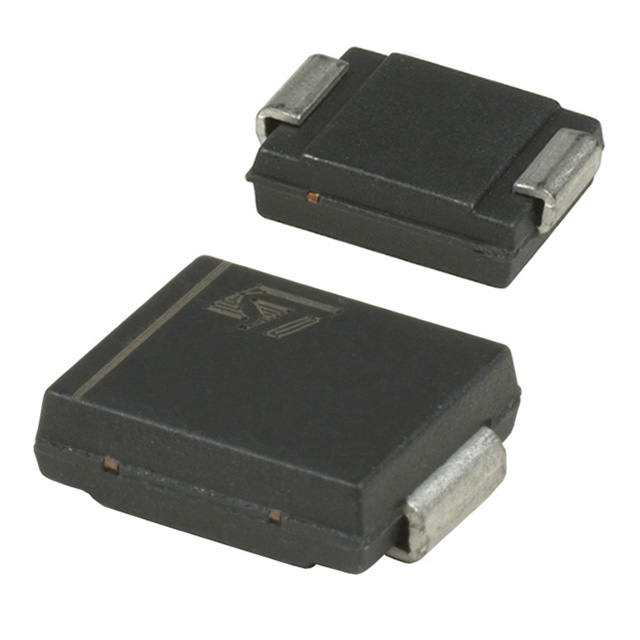

FAST / ULTRAFAST DIODE, 200 V, 4 A, SINGLE, 1.05 V, 24 NS, 70 A, 2 PINS, DO-214AB (SMC)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +8

STTH4R02S

Active

STMicroelectronics

FAST / ULTRAFAST DIODE, 200 V, 4 A, SINGLE, 1.05 V, 24 NS, 70 A, 2 PINS, DO-214AB (SMC)

Deep-Dive with AI

DocumentsDatasheet Datasheet +8

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	STTH4R02S	STTH4R02 Series

Current - Average Rectified (Io)	4 A	4 A
Current - Reverse Leakage @ Vr	3 µA	3 µA
Mounting Type	Surface Mount	Through Hole, Surface Mount
Operating Temperature - Junction [Max]	175 °C	175 °C
Package / Case	SMC, DO-214AB	DO-201AB, Axial, DO-32, SC-63, DPAK (2 Leads + Tab), TO-252-3, SMC, DO-214AB, SMB, DO-214AA, TO-220-2
Reverse Recovery Time (trr)	30 ns	30 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	SMC	DO-201AB, DPAK, SMC, SMB, TO-220AC
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V	200 V
Voltage - Forward (Vf) (Max) @ If	1.05 V	1.05 V

STTH4R02 Series

DIODE GEN PURP 200V 4A DO201AB

Part	Package / Case	Supplier Device Package	Speed	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If
STMicroelectronics STTH4R02	Axial, DO-201AB, DO-32	DO-201AB	200 mA, 500 ns	30 ns	175 °C	200 V	Through Hole	Standard	3 µA	4 A	1.05 V
STMicroelectronics STTH4R02B-TR	DPAK (2 Leads + Tab), SC-63, TO-252-3	DPAK	200 mA, 500 ns	30 ns	175 °C	200 V	Surface Mount	Standard	3 µA	4 A	1.05 V
STMicroelectronics STTH4R02S	DO-214AB, SMC	SMC	200 mA, 500 ns	30 ns	175 °C	200 V	Surface Mount	Standard	3 µA	4 A	1.05 V
STMicroelectronics STTH4R02U	DO-214AA, SMB	SMB	200 mA, 500 ns	30 ns	175 °C	200 V	Surface Mount	Standard	3 µA	4 A	1.05 V
STMicroelectronics STTH4R02D	TO-220-2	TO-220AC	200 mA, 500 ns	30 ns	175 °C	200 V	Through Hole	Standard	3 µA	4 A	1.05 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.58
		10	$ 0.38
		100	$ 0.27
		500	$ 0.20
		1000	$ 0.18
	Digi-Reel®	1	$ 0.58
		10	$ 0.38
		100	$ 0.27
		500	$ 0.20
		1000	$ 0.18
	Tape & Reel (TR)	2500	$ 0.12
		5000	$ 0.12
Newark	Each (Supplied on Cut Tape)	1	$ 0.57
		10	$ 0.38
		25	$ 0.34
		50	$ 0.31
		100	$ 0.28

Description

General part information

STTH4R02 Series

The STTH4R02 uses ST's new 200 V planar Pt doping technology, and it is specially suited for switching mode base drive and transistor circuits.Packaged in DPAK, SMB and SMC, this device is intended for use in low voltage, high frequency inverters, free whNegligible switching lossesHigh junction temperatureVery low conduction lossesLow forward and reverse recovery timesECOPACK® compliant component for DPAK on demand
