C4AF3BW4680A3LK

Active

KEMET

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 4 PIN, 6.8 ΜF, ± 10%, AC FILTER, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +3

C4AF3BW4680A3LK

Active

KEMET

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 4 PIN, 6.8 ΜF, ± 10%, AC FILTER, THROUGH HOLE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4AF3BW4680A3LK

Applications	Automotive
Capacitance	6.8 ÁF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	1.7 mOhm
Lead Spacing	37.5 mm
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial - 4 Leads
Ratings	AEC-Q200
Size / Dimension [x]	42 mm
Size / Dimension [x]	1.654 in
Size / Dimension [y]	1.181 in
Size / Dimension [y]	30 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	400 V

C4AF3B Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Dielectric Material	ESR (Equivalent Series Resistance)	Voltage Rating - AC	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Applications	Mounting Type	Capacitance	Tolerance	Lead Spacing	Lead Spacing	Termination
KEMET C4AF3BU4100A1YK	14 mm	31.5 mm	0.551 in	1.24 in	Metallized Polypropylene (PP)	7.9 mOhms	400 V	AEC-Q200	28.2 mm	1.11 in	105 ░C	-55 °C	Radial	Automotive	Through Hole	1 µF	10 %	27.5 mm	1.083 in	PC Pins
KEMET C4AF3BW4330A3FK	20 mm	42 mm	0.787 in	1.654 in	Metallized Polypropylene (PP)	3.2 mOhm	400 V	AEC-Q200	40.2 mm	1.583 in	105 ░C	-55 °C	Radial - 4 Leads	Automotive	Through Hole	3.3 µF	10 %	37.5 mm	1.476 in	PC Pins
KEMET C4AF3BU4250A12K	22 mm	31.5 mm	0.866 in	1.24 in	Metallized Polypropylene (PP)	4.3 mOhms	400 V	AEC-Q200	37.2 mm	1.465 in	105 ░C	-55 °C	Radial	Automotive	Through Hole	2.5 µF	10 %	27.5 mm	1.083 in	PC Pins
KEMET C4AF3BW4900A3OK	35 mm	42 mm	1.378 "	1.654 in	Metallized Polypropylene (PP)	1.4 mOhms	400 V	AEC-Q200	50.2 mm	1.976 "	105 ░C	-55 °C	Radial - 4 Leads	Automotive	Through Hole	9 µF	10 %	37.5 mm	1.476 in	PC Pins
KEMET C4AF3BW4680A3LK	30 mm	42 mm	1.181 in	1.654 in	Metallized Polypropylene (PP)	1.7 mOhm	400 V	AEC-Q200			105 ░C	-55 °C	Radial - 4 Leads	Automotive	Through Hole	6.8 ÁF	10 %	37.5 mm	1.476 in	PC Pins
KEMET C4AF3BU4150A11K					Metallized Polypropylene (PP)	5.8 mOhms	400 V	AEC-Q200	29.2 mm	1.15 in	105 ░C	-55 °C	Radial	Automotive	Through Hole	1.5 µF	10 %	27.5 mm	1.083 in	PC Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.04
		36	$ 6.79
		72	$ 6.26
		108	$ 5.43
		504	$ 4.91
		1008	$ 4.56
Newark	Each	1	$ 10.25
		10	$ 6.40
		25	$ 6.17
		50	$ 5.94
		100	$ 5.82
		250	$ 5.71

Description

General part information

C4AF3B Series

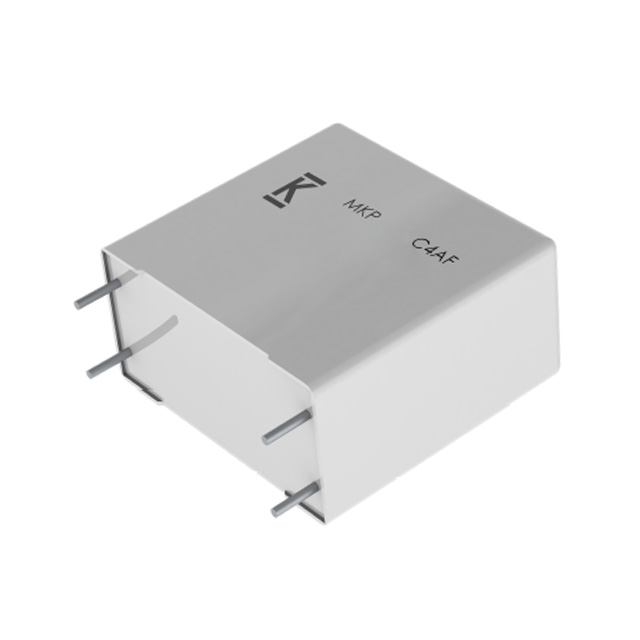

C4AF are polypropylene metallized film capacitors that are rectangular shape, with a plastic box-type design (white or grey in color), filled with resin and have 2 or 4 tinned copper wires. These capacitors are intended to withstand harsh environmental conditions. Typical applications include clamping, AC and harmonic filtering in UPS systems, motor drives, renewable energy, and automotive systems.
