PI6CG330440AZUDIEX-13R

Active

Diodes Inc

19-OUTPUT PCIE 5.0/6.0 CLOCK GENERATOR WITH ON-CHIP TERMINATION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques

PI6CG330440AZUDIEX-13R

Active

Diodes Inc

19-OUTPUT PCIE 5.0/6.0 CLOCK GENERATOR WITH ON-CHIP TERMINATION

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PI6CG330440AZUDIEX-13R

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Divider/Multiplier	False
Input	HCSL, Crystal
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	HCSL

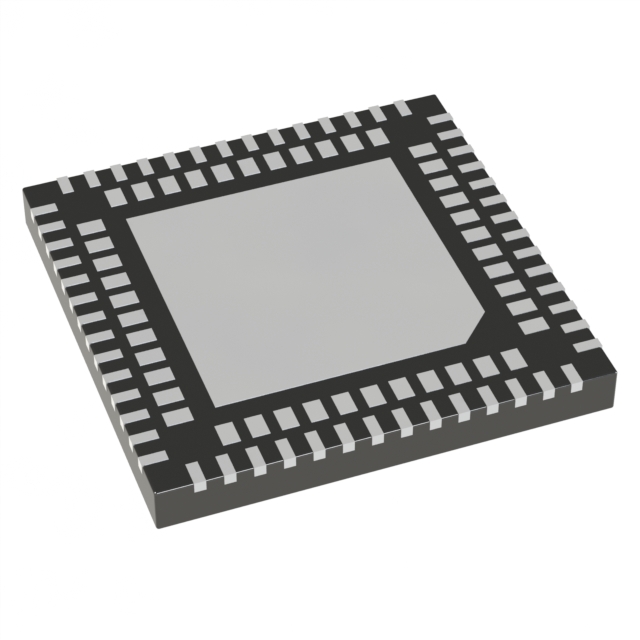

Package / Case	100-UFQFN Dual Rows, Exposed Pad
PLL	True
Ratio - Input:Output	2:19
Supplier Device Package	100-UQFN (8x8)
Type	Clock Generator
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	3.135 V

PI6CG330440A Series

19-Output PCIe 5.0/6.0 Clock Generator With On-chip Termination

Part	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Divider/Multiplier	Type	Number of Circuits	PLL	Output	Operating Temperature [Max]	Operating Temperature [Min]	Input	Supplier Device Package	Ratio - Input:Output
Diodes Inc PI6CG330440AZUDIEX-13R			Surface Mount	3.465 V	3.135 V	100-UFQFN Dual Rows Exposed Pad		Clock Generator	1		HCSL	85 °C	-40 °C	Crystal HCSL	100-UQFN (8x8)	2:19

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 13.74
		10	$ 12.63
		25	$ 12.11
		100	$ 10.67
		250	$ 10.14
		500	$ 9.49
		1000	$ 8.70
	Digi-Reel®	1	$ 13.74
		10	$ 12.63
		25	$ 12.11
		100	$ 10.67
		250	$ 10.14
		500	$ 9.49
		1000	$ 8.70
	Tape & Reel (TR)	3000	$ 8.10

Description

General part information

PI6CG330440A Series

The PI6CG330440A is a 19-output very low jitter clock generator. It takes a reference input to generate 25MHz and 100MHz outputs. The on-chip termination can save 80 external resistors and make layout easier. Individual OE pin for each output provides easier power management.
