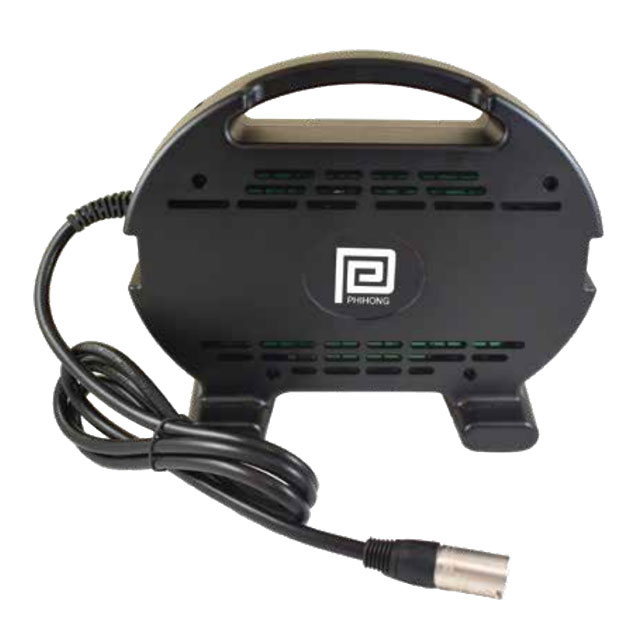

DA200U-250A-R
ActivePhihong USA
BATT CHARGER DESKTOP 24V 8A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DA200U-250A-R
ActivePhihong USA
BATT CHARGER DESKTOP 24V 8A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DA200U-250A-R |
|---|---|
| Approval Agency | cULus, FCC, CE |
| Battery Cell Size | 24 V |
| Battery Chemistry | Lead Acid |
| Charge Current - Max [Max] | 8 A |
| Charge Time | 12 Hrs |
| Mounting Type | Desktop |
| Number of Cells | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 10.13 in |
| Size / Dimension [x] | 257.3 mm |
| Size / Dimension [y] | 4.724 in |
| Size / Dimension [y] | 120 mm |
| Size / Dimension [z] | 210 mm |
| Size / Dimension [z] | 8.268 " |
| Termination Style | XLR, 3 Pin |
| Type | Desktop |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 133.99 | |
| 5 | $ 131.83 | |||
| 10 | $ 129.67 | |||
| 25 | $ 125.35 | |||
| 50 | $ 121.02 | |||
Description
General part information
DA200U Series
Desktop Battery Charger 24V 8A 24V
