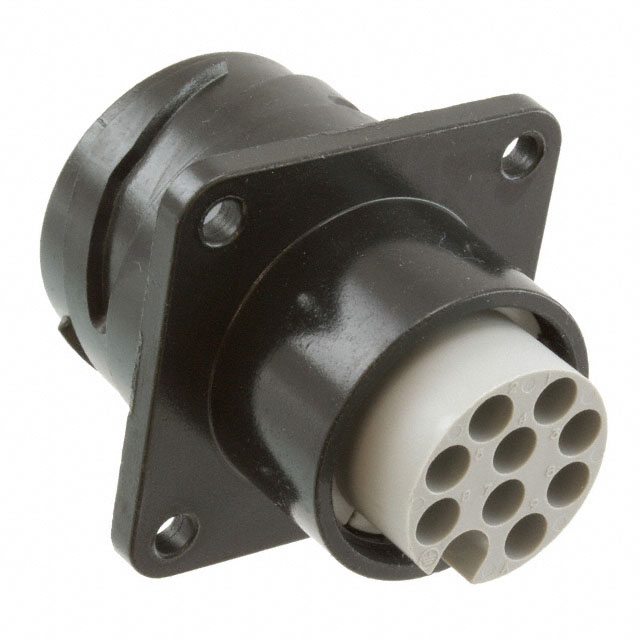

JL05-2A18-1PC-F0-R

Obsolete

JAE Electronics

CONN RCPT HSG MALE 10POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCircular Connectors Datasheet

JL05-2A18-1PC-F0-R

Obsolete

JAE Electronics

CONN RCPT HSG MALE 10POS PNL MT

Deep-Dive with AI

DocumentsCircular Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JL05-2A18-1PC-F0-R

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Finish	Zinc
Shell Material	Aluminum
Shell Size - Insert [Max]	1
Shell Size - Insert [Min]	18
Shielding	Unshielded
Type	For Male Pins

JL05-2A1 Series

Part	Contact Size	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Finish	Mounting Feature	Shielding	Note	Ingress Protection	Contact Shape	Number of Positions	Housing Color	Type	Shell Material	Material Flammability Rating	Connector Type	Orientation	Contact Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shell Size - Insert
JAE Electronics JL05-2A18-1SC-F0-R	16	1	18	Zinc	Flange	Unshielded	Contacts Not Included	IP67 - Dust Tight Waterproof	Circular	10	Black	For Female Sockets	Aluminum	UL94 V-0	Receptacle Housing	N	Crimp	Bayonet Lock	-55 °C	125 °C	Synthetic Resin
JAE Electronics JL05-2A18-11PC-F0-RK
JAE Electronics JL05-2A18-1SC-F0-RK
JAE Electronics JL05-2A18-1PC-F0-RK
JAE Electronics JL05-2A18-11SC-F0-R	12			Zinc	Flange	Unshielded	Contacts Not Included	IP67 - Dust Tight Waterproof	Circular	5	Black	For Female Sockets	Aluminum	UL94 V-0	Receptacle Housing	N	Crimp	Bayonet Lock	-55 °C	125 °C	Synthetic Resin	18-11
JAE Electronics JL05-2A18-1PC-F0-R	16	1	18	Zinc	Flange	Unshielded	Contacts Not Included	IP67 - Dust Tight Waterproof	Circular	10	Black	For Male Pins	Aluminum	UL94 V-0	Receptacle Housing	N	Crimp	Bayonet Lock	-55 °C	125 °C	Synthetic Resin
JAE Electronics JL05-2A18-11PC-F0-R	12			Zinc	Flange	Unshielded	Contacts Not Included	IP67 - Dust Tight Waterproof	Circular	5	Black	For Male Pins	Aluminum	UL94 V-0	Receptacle Housing	N	Crimp	Bayonet Lock	-55 °C	125 °C	Synthetic Resin	18-11
JAE Electronics JL05-2A18-19APC-F0-R	20			Zinc	Flange	Unshielded	Contacts Not Included	IP67 - Dust Tight Waterproof	Circular	19	Black	For Male Pins	Aluminum	UL94 V-0	Receptacle Housing	N	Crimp	Bayonet Lock	-55 °C	125 °C	Synthetic Resin	18-19A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

JL05-2A1 Series

10 (9 + PE) Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

Circular Connectors

Datasheet
