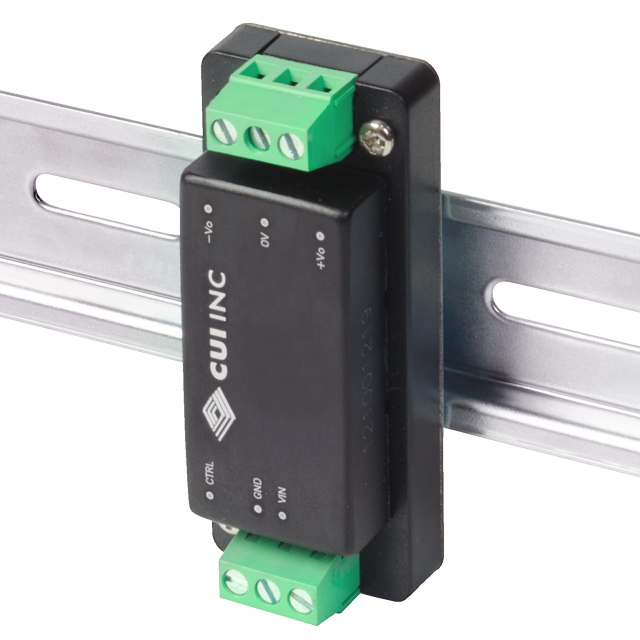

PYB20-Q48-D15-DIN

Obsolete

CUI Inc.

DC/DC DIN RAIL SUPPLY +/-15V 20W

Deep-Dive with AI

Search across all available documentation for this part.

PYB20-Q48-D15-DIN

Obsolete

CUI Inc.

DC/DC DIN RAIL SUPPLY +/-15V 20W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PYB20-Q48-D15-DIN

Approval Agency	EN
Current - Output (Max)	667 mA
Current - Output (Max)	667 mA
DC Voltage - Input (Max) [Max]	75 V
DC Voltage - Input (Min) [Min]	18 V
Efficiency	87 %
Input Type	DC
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	20 W
Size / Dimension [x]	2.99 in
Size / Dimension [x]	76 mm
Size / Dimension [y]	31.5 mm
Size / Dimension [y]	1.24 in
Size / Dimension [z]	22.2 mm
Size / Dimension [z]	0.87 in
Standard Number	55024, 55032
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

PYB20 Series

Part	DC Voltage - Input (Min) [Min]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]	Efficiency	Approval Agency	Input Type	Standard Number	DC Voltage - Input (Max) [Max]	Voltage - Input (Max) [Max]	Type	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Isolation	Features	Package / Case	Applications	Control Features	Voltage - Output 2	Current - Output (Max)	Standard Number	Current - Output (Max)
CUI Inc. PYB20-Q24-S15-DIN	9 V	15 V	85 °C	-40 °C	1	20 W	31.5 mm	2.99 in	1.24 in	76 mm	22.2 mm	0.87 in	1.333 A	88 %	EN	DC	55024 55032	36 V
CUI Inc. PYB20-Q48-S3-DIN	18 V	3.3 V	85 °C	-40 °C	1	20 W	31.5 mm	2.99 in	1.24 in	76 mm	22.2 mm	0.87 in	5 A	84 %	EN	DC	55024 55032	75 V
CUI Inc. PYB20-Q24-S12-T		12 V	85 °C	-40 °C	1	20 W	31.5 mm	2.99 in	1.24 in	76 mm	21.2 mm	0.84 "	1.667 A	89 %	EN		55024 55032		36 V	Enclosed	9 V	Chassis Mount
CUI Inc. PYB20-Q48-S3-U		3.3 V	85 °C	-40 °C	1	20 W	52.3 mm	2.16 in	2.06 in	54.9 mm	19.1 mm	0.75 in	5 A	86 %	EN IEC				75 V	Enclosed	18 V	Chassis Mount
CUI Inc. PYB20-Q48-S24		24 V	85 °C	-40 °C	1	20 W	25.4 mm	2 in	25.4 mm	50.8 mm	11.8 mm	0.47 "	834 mA	90 %	CB Scheme EN IEC UL		55024 60950-1 61000-3-2 61000-3-3		75 V	Isolated Module	18 V	Through Hole	1.5 kV	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	ITE (Commercial)	Active High Enable
CUI Inc. PYB20-Q24-S3-T		3.3 V	85 °C	-40 °C	1	20 W	31.5 mm	2.99 in	1.24 in	76 mm	21.2 mm	0.84 "	5 A	86 %	EN		55024 55032		36 V	Enclosed	9 V	Chassis Mount
CUI Inc. PYB20-Q24-D12-T		12 V	85 °C	-40 °C	2	20 W	31.5 mm	2.99 in	1.24 in	76 mm	21.2 mm	0.84 "		88 %	EN		55024 55032		36 V	Enclosed	9 V	Chassis Mount						-12 V	834 mA
CUI Inc. PYB20-Q24-S15		15 V	85 °C	-40 °C	1	20 W	25.4 mm	2 in	25.4 mm	50.8 mm	11.8 mm	0.47 "	1.333 A	90 %	EN				36 V	Isolated Module	9 V	Through Hole	1.5 kV	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	ITE (Commercial)	Active High Enable			55024
CUI Inc. PYB20-Q24-S24		24 V	85 °C	-40 °C	1	20 W	25.4 mm	2 in	25.4 mm	50.8 mm	11.8 mm	0.47 "	834 mA	90 %	EN				36 V	Isolated Module	9 V	Through Hole	1.5 kV	OCP OVP Remote On/Off SCP UVLO	6-DIP Module	ITE (Commercial)	Active High Enable			55024
CUI Inc. PYB20-Q48-D15-DIN	18 V	15 V	85 °C	-40 °C	2	20 W	31.5 mm	2.99 in	1.24 in	76 mm	22.2 mm	0.87 in		87 %	EN	DC	55024 55032	75 V										-15 V	667 mA		667 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PYB20 Series

DC/DC DIN RAIL SUPPLY +/-15V 20W

Documents

Technical documentation and resources

No documents available
