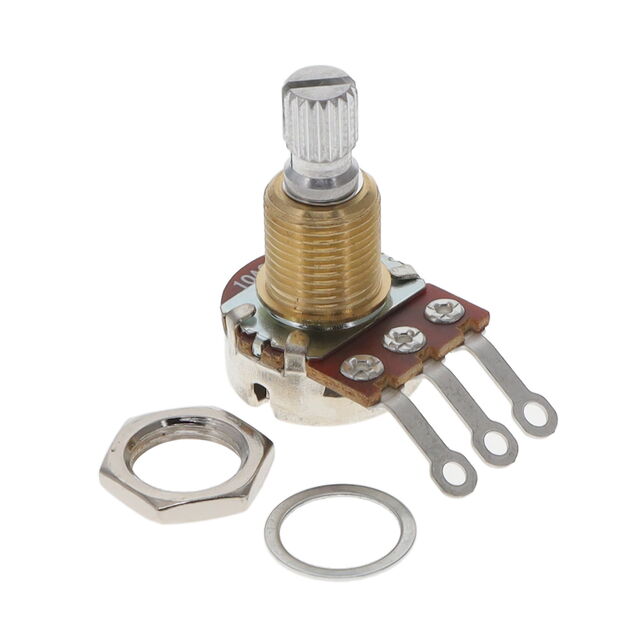

PDB181-GTR01-253A2

Active

Bourns Inc.

PANEL CONTROL - 17MM-ST-CARBON /TRAY PACKAGING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PDB181-GTR01-253A2

Active

Bourns Inc.

PANEL CONTROL - 17MM-ST-CARBON /TRAY PACKAGING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PDB181-GTR01-253A2

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length	19 mm
Actuator Length [z]	0.748 in
Actuator Type	Knurled and Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	3/8-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.1 W
Power (Watts)	0.1 W
Resistance (Ohms)	25k
Resistive Material	Carbon
Rotation	300 ░
Size - Body	Round
Size - Body [diameter]	17 mm
Size - Body [diameter]	0.669 in
Taper	Logarithmic
Termination Style	Solder Lug
Tolerance	20 %

PDB181 Series

Part	Tolerance	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Power (Watts)	Power (Watts)	Taper	Number of Gangs	Actuator Type	Size - Body [diameter]	Size - Body	Size - Body [diameter]	Resistance (Ohms)	Adjustment Type	Actuator Length	Actuator Length [z]	Bushing Thread	Termination Style	Number of Turns	Resistive Material	Bushing Thread	Actuator Length [x]	Actuator Length [x]	Power (Watts)	Actuator Length [z]	Resistance (Ohms)
Bourns Inc. PDB181-GTR01-253A2	20 %	0.236 in	6 mm	300 ░	0.1 W	0.1 W	Logarithmic	1	Knurled and Slotted	17 mm	Round	0.669 in	25k	User Defined	19 mm	0.748 in	3/8-32	Solder Lug	1	Carbon
Bourns Inc. PDB181-K425K-103B	20 %	0.236 in	6 mm	300 ░	0.2 W		Linear	1	Knurled and Slotted	17 mm	Round	0.669 in	10k	Side Adjustment			M7	PC Pins	1	Carbon	0.75	0.984 in	25 mm	1/5
Bourns Inc. PDB181-K420K-203A2	20 %	0.236 in	6 mm	300 ░	0.1 W	0.1 W	Logarithmic	1	Knurled and Slotted	17 mm	Round	0.669 in		Side Adjustment		0.787 in	M7	PC Pins	1	Carbon	0.75				20 mm	20 kOhms
Bourns Inc. PDB181-K415K-103B	20 %	0.236 in	6 mm	300 ░	0.2 W		Linear	1	Knurled and Slotted	17 mm	Round	0.669 in	10k	Side Adjustment	15 mm	0.591 in	M7	PC Pins	1	Carbon	0.75			1/5
Bourns Inc. PDB181-K415K-503B	20 %	0.236 in	6 mm	300 ░	0.2 W		Linear	1	Knurled and Slotted	17 mm	Round	0.669 in		Side Adjustment	15 mm	0.591 in	M7	PC Pins	1	Carbon	0.75			1/5		50 kOhms
Bourns Inc. PDB181-K425K-104B	20 %	0.236 in	6 mm	300 ░	0.2 W		Linear	1	Knurled and Slotted	17 mm	Round	0.669 in		Side Adjustment			M7	PC Pins	1	Carbon	0.75	0.984 in	25 mm	1/5		100 kOhms
Bourns Inc. PDB181-E415F-504B	20 %	0.236 in	6 mm	300 ░	0.2 W		Linear	1	Flatted	17 mm	Round	0.669 in		User Defined	15 mm	0.591 in	M7	Solder Lug	1	Carbon	0.75			1/5		500 kOhms
Bourns Inc. PDB181-E420P-103B	20 %	0.236 in	6 mm	300 ░	0.2 W		Linear	1	Round	17 mm	Round	0.669 in	10k	User Defined		0.787 in	M7	Solder Lug	1	Carbon	0.75			1/5	20 mm
Bourns Inc. PDB181-E415K-105A2	20 %	0.236 in	6 mm	300 ░	0.1 W	0.1 W	Logarithmic	1	Knurled and Slotted	17 mm	Round	0.669 in	1M	User Defined	15 mm	0.591 in	M7	Solder Lug	1	Carbon	0.75
Bourns Inc. PDB181-A420K-103B	20 %	0.236 in	6 mm	300 ░	0.2 W		Linear	1	Knurled and Slotted	17 mm	Round	0.669 in	10k	Side Adjustment		0.787 in	M7	PC Pins	1	Carbon	0.75			1/5	20 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.91
		10	$ 1.68
		25	$ 1.50
		50	$ 1.44
		100	$ 1.39
		250	$ 1.33
		450	$ 1.10
		950	$ 1.04
		4900	$ 1.02
Newark	Each	1000	$ 1.25
		2500	$ 1.12

Description

General part information

PDB181 Series

25k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Carbon 0.1W, 1/10W Solder Lug
