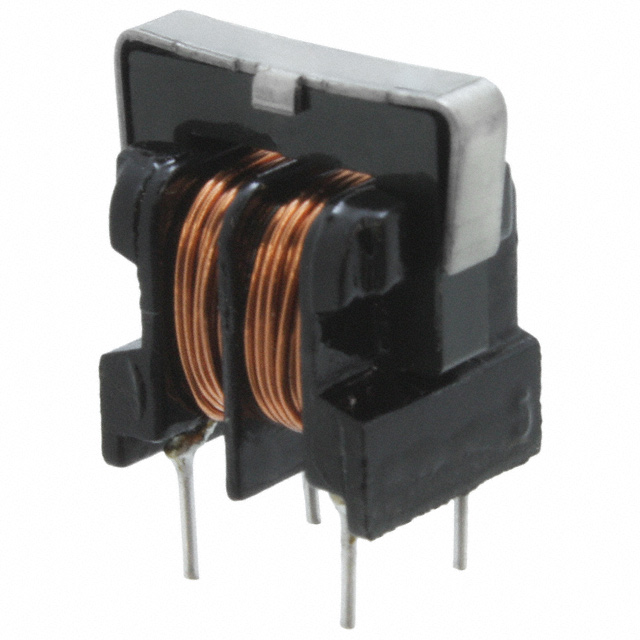

7414-RC
ActiveBourns Inc.
CMC 20MH 600MA 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7414-RC
ActiveBourns Inc.
CMC 20MH 600MA 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7414-RC |
|---|---|
| Current Rating (Max) [Max] | 600 mA |
| DC Resistance (DCR) (Max) [Max] | 1.11 Ohm |
| Filter Type | Power Line |
| Height (Max) | 0.827 in |
| Height (Max) | 21 mm |
| Inductance @ Frequency | 1 kHz, 20 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 0.748 in |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [y] | 17 mm |
| Size / Dimension [y] | 0.669 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.06 | |
| 10 | $ 1.68 | |||
| 25 | $ 1.55 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.37 | |||
| 250 | $ 1.26 | |||
| 500 | $ 1.19 | |||
| 1320 | $ 1.09 | |||
| 5280 | $ 0.96 | |||
Description
General part information
7414 Series
20 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 1.11Ohm
