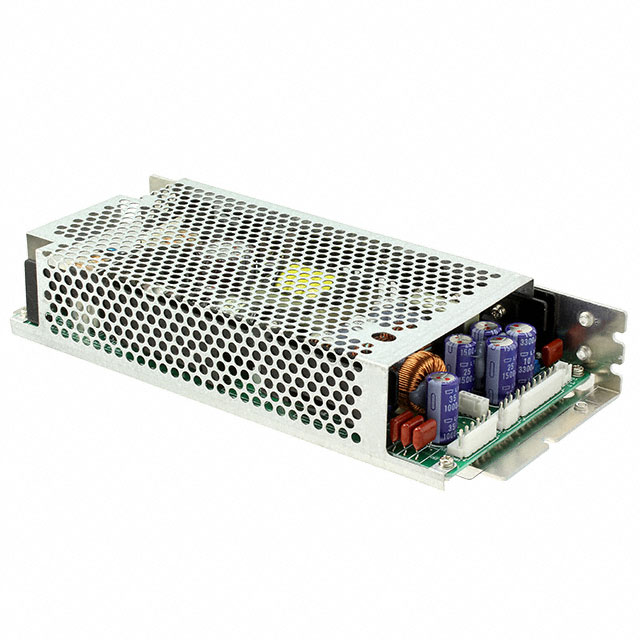

ZWQ130-5223/A

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 4 OUTPUTS, 130 W, 5 V, 15 A, 12 V, 4 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 4 OUTPUTS, 130 W, 5 V, 15 A, 12 V, 4 A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZWQ130-5223/A	ZWQ130 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	15 A	15 A
Current - Output 2	4 A	4 A
Current - Output 3	4 A	4 A
Current - Output 4	10 A	10 A
Efficiency	72 %	72 %
Features	PFC, Adjustable Output, Universal Input	PFC, Adjustable Output, Universal Input
Minimum Load Required	-	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	4	4
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	130 W	130 W
Size / Dimension [x]	8.86 in	8.86 in
Size / Dimension [x]	225 mm	225 mm
Size / Dimension [y]	106 mm	106 mm
Size / Dimension [y]	4.17 in	4.17 in
Size / Dimension [z]	35 mm	35 mm
Size / Dimension [z]	1.38 in	1.38 in
Type	Enclosed	Enclosed, Open Frame
Voltage - Input [Max]	265 VAC	265 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	5 V
Voltage - Output 2	12 V	12 V
Voltage - Output 3	-12 V	-12 V
Voltage - Output 4	3.3 V	3.3 - 5 V

AC/DC ENCLOSED POWER SUPPLY (PSU), 4 OUTPUTS, 130 W, 5 V, 15 A, 12 V, 4 A

Part	Voltage - Output 4	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Current - Output 3	Approval Agency	Voltage - Output 2	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Type	Current - Output 2	Power (Watts)	Voltage - Isolation	Voltage - Output 3	Efficiency	Features	Voltage - Output 1	Current - Output 4	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Mounting Type
TDK-LAMBDA ZWQ130-5225/A	5 V	-10 °C	60 °C	15 A	4 A	CE	12 V	ITE (Commercial)	85 VAC	265 VAC	Enclosed	4 A	130 W	3000 V	-12 V	72 %	Adjustable Output, PFC, Universal Input	5 V	10 A	35 mm	8.86 in	225 mm	1.38 in	106 mm	4.17 in	4	Chassis Mount
TDK-LAMBDA ZWQ130-5223/A	3.3 V	-10 °C	60 °C	15 A	4 A	CE	12 V	ITE (Commercial)	85 VAC	265 VAC	Enclosed	4 A	130 W	3000 V	-12 V	72 %	Adjustable Output, PFC, Universal Input	5 V	10 A	35 mm	8.86 in	225 mm	1.38 in	106 mm	4.17 in	4	Chassis Mount
TDK-LAMBDA ZWQ130-5225/L	5 V	-10 °C	60 °C	15 A	4 A	CE	12 V	ITE (Commercial)	85 VAC	265 VAC	Open Frame	4 A	130 W	3000 V	-12 V	72 %	Adjustable Output, PFC, Universal Input	5 V	10 A	35 mm	8.86 in	225 mm	1.38 in	106 mm	4.17 in	4	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 4 Output 5V 12V -12V 3.3V 85 ~ 265 VAC Input
