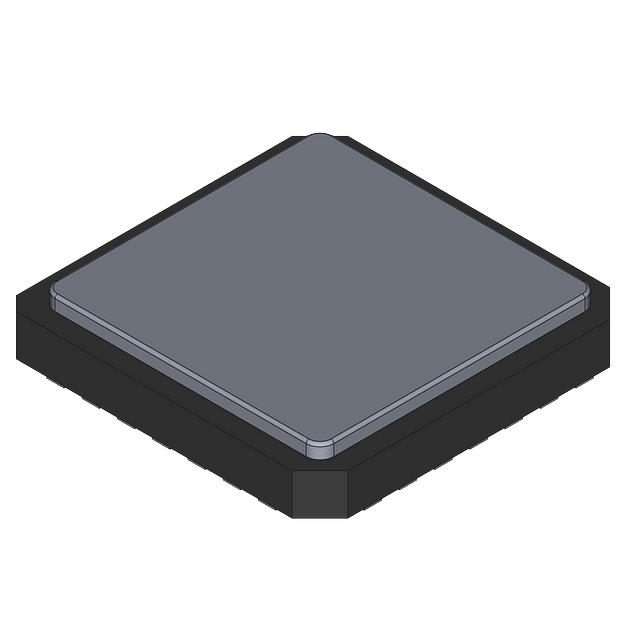

ATMEGA168A-MMH

Active

Atmel

IC MCU 8BIT 16KB FLASH 28VQFN

Search across all available documentation for this part.

Active

Atmel

IC MCU 8BIT 16KB FLASH 28VQFN

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Core Processor	RAM Size	Program Memory Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of I/O	Supplier Device Package	Speed	EEPROM Size	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Program Memory Size	Connectivity	Core Size	Data Converters [custom]	Data Converters [custom]	Oscillator Type	Data Converters [custom]	Package / Case	Package / Case
Atmel ATMEGA168PA-MU	Surface Mount	AVR	1 K	FLASH	1.8 V	5.5 V	23	32-VQFN (5x5)	20 MHz	512 x 8	85 °C	-40 °C	32-VFQFN Exposed Pad	16 KB	I2C SPI UART/USART	8-Bit	8	10	Internal
Atmel ATMEGA168A-MMH	Surface Mount	AVR	1 K	FLASH	1.8 V	5.5 V	23	28-VQFN (4x4)	20 MHz	512 x 8	85 °C	-40 °C	28-VFQFN Exposed Pad	16 KB	I2C SPI UART/USART	8-Bit	8	10	Internal
Atmel ATMEGA168PV-10PU	Through Hole	AVR	1 K	FLASH	1.8 V	5.5 V	23	28-PDIP	10 MHz	512 x 8	85 °C	-40 °C	28-DIP	16 KB	I2C SPI UART/USART	8-Bit	6		Internal	10 b	0.3 in	7.62 mm
Atmel ATMEGA168P-20MU	Surface Mount	AVR	1 K	FLASH	2.7 V	5.5 V	23	32-VQFN (5x5)	20 MHz	512 x 8	85 °C	-40 °C	32-VFQFN Exposed Pad	16 KB	I2C SPI UART/USART	8-Bit	8	10	Internal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AVR AVR® ATmega Microcontroller IC 8-Bit 20MHz 16KB (8K x 16) FLASH 28-VQFN (4x4)
