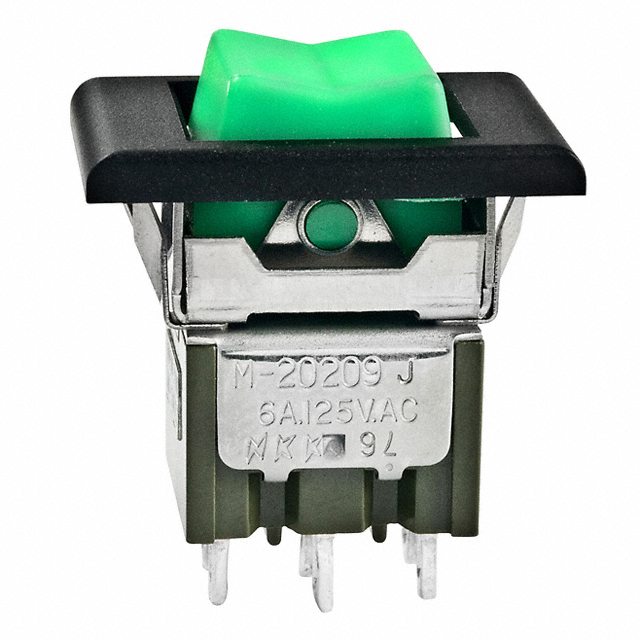

M2027TJW01-FF-1A
ObsoleteNKK Switches
SWITCH ROCKER SP3T 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2027TJW01-FF-1A
ObsoleteNKK Switches
SWITCH ROCKER SP3T 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2027TJW01-FF-1A |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Approval Agency | CSA, UL |
| Circuit | SP3T |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 3 A, 6 A |
| Electrical Life | 25000 Steps |
| Features | Jumper needed to achieve triple throw |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [x] | 15.9 mm |
| Panel Cutout Dimensions [y] | 13.1 mm |
| Switch Function | On-On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.59 | |
| 10 | $ 11.37 | |||
| 25 | $ 10.82 | |||
Description
General part information
M2027TJ Series
Rocker Switch SP3T 6A (AC), 3A (DC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
