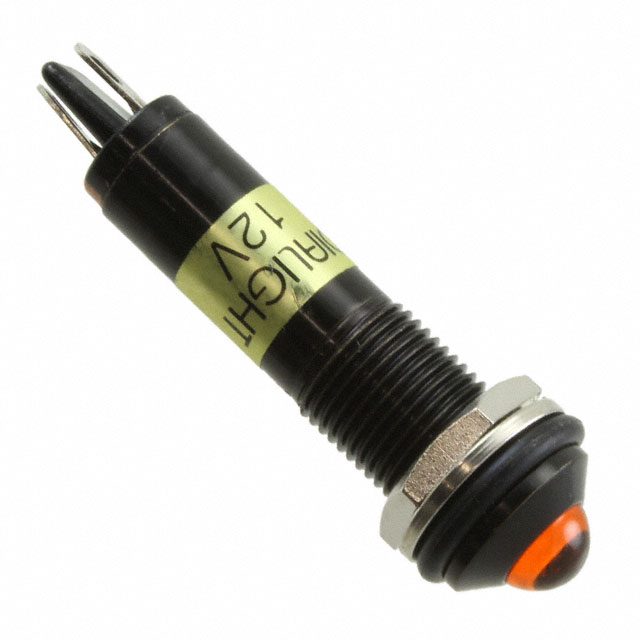

6791322333F

Active

DIALIGHT

9MM HO/O PMI-12VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

9MM HO/O PMI-12VDC W/O-RING

Technical Specifications

Parameters and characteristics for this part

Specification	6791322333F

Current	30 mA
Ingress Protection	NEMA 4X, IP66
Lamp Color	Yellow
Lens Size [diameter]	6 mm
Lens Style	Round with Domed Top
Millicandela Rating	1570 mcd
Panel Cutout Dimensions [custom]	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Solder Lug
Type	LED
Voltage	12 V

9MM HO/O PMI-12VDC W/O-RING

Part	Voltage	Ratings	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Current	Lens Size [diameter]	Termination Style	Lens Style	Ingress Protection	Panel Cutout Shape	Type	Lamp Color	Millicandela Rating
DIALIGHT 6791322333F	12 V	DC	0.37 in	9.4 mm	30 mA	6 mm	Solder Lug	Round with Domed Top	IP66, NEMA 4X	Round	LED	Yellow	1570 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	125	$ 6.12

General part information

LED Panel Indicator Yellow 12V 30mA Solder Lug
