R125460000

Active

Radiall USA, Inc.

SMA / UNIVERSAL 2 HOLE FLANGE JA

Deep-Dive with AI

Search across all available documentation for this part.

R125460000

Active

Radiall USA, Inc.

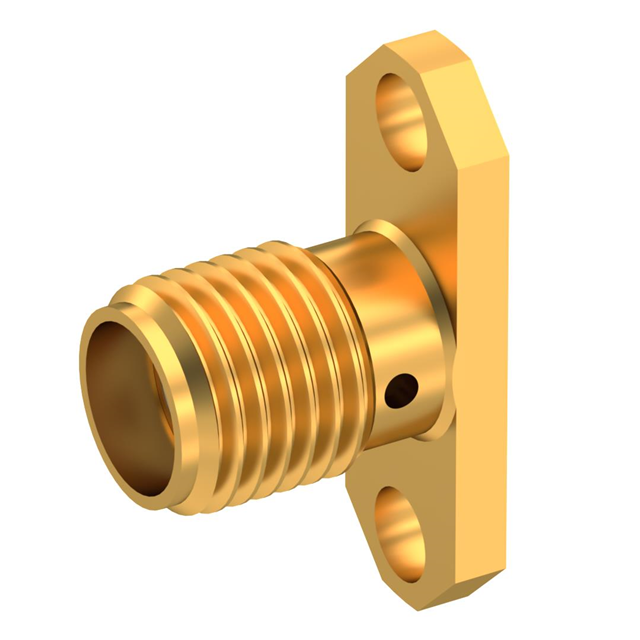

SMA / UNIVERSAL 2 HOLE FLANGE JA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R125460000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw
Voltage Rating	500 V

R12546 Series

Part	Frequency - Max [Max]	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Mating Cycles	Number of Ports	Dielectric Material	Body Finish	Mounting Feature	Impedance	Contact Termination	Shield Termination	Body Material	Center Contact Material	Connector Type	Connector Style	Voltage Rating	Features	Mounting Type
Radiall USA, Inc. R125465010	18 GHz	Gold	125 °C	-65 ░C	Gold	500	1	Polytetrafluoroethylene (PTFE)	Gold	Flange	50 Ohms	Compression	Screw	Stainless Steel	Bronze	Female Socket Jack	SMA
Radiall USA, Inc. R125465001	18 GHz	Silver	105 ░C	-65 ░C	Gold	500	1	Polytetrafluoroethylene (PTFE)		Flange	50 Ohms	Compression	Screw	Stainless Steel	Beryllium Copper	Female Socket Jack	SMA	500 V
Radiall USA, Inc. R125462001	18 GHz		165 °C	-65 ░C	Gold	500	1	Polytetrafluoroethylene (PTFE)		Flange	50 Ohms	Solder	Solder	Stainless Steel	Beryllium Copper	Female Socket Jack	SMA	500 V	Extended Insulation
Radiall USA, Inc. R125465011	18 GHz	Silver	165 °C	-65 ░C	Gold	500	1	Polytetrafluoroethylene (PTFE)		Flange	50 Ohms	Compression	Screw	Stainless Steel	Beryllium Copper	Female Socket Jack	SMA	500 V
Radiall USA, Inc. R125464271W	18 GHz	Silver	165 °C	-65 ░C	Gold	500	1	Polytetrafluoroethylene (PTFE)		Flange	50 Ohms	Solder	Solder	Stainless Steel	Beryllium Copper	Female Socket Jack	SMA	500 V	Extended Insulation	Panel Mount Through Hole
Radiall USA, Inc. R125463000	18 GHz	Gold	165 °C	-65 ░C	Gold	500	1	Polytetrafluoroethylene (PTFE)	Gold	Flange	50 Ohms	Solder	Solder	Stainless Steel	Beryllium Copper	Female Socket Jack	SMA	500 V	Extended Insulation	Panel Mount Through Hole
Radiall USA, Inc. R125464000W	18 GHz	Gold	165 °C	-65 ░C	Gold	500	1	Polytetrafluoroethylene (PTFE)	Gold	Flange	50 Ohms	Solder	Solder	Stainless Steel	Beryllium Copper	Female Socket Jack	SMA	500 V	Extended Insulation
Radiall USA, Inc. R125460001	18 GHz	Silver	165 °C	-65 ░C	Gold	500	1	Polytetrafluoroethylene (PTFE)		Flange	50 Ohms	Compression	Screw	Stainless Steel	Beryllium Copper	Female Socket Jack	SMA	500 V
Radiall USA, Inc. R125464270	18 GHz	Gold	165 °C	-65 ░C	Gold	500	1	Polytetrafluoroethylene (PTFE)	Gold	Flange	50 Ohms	Solder	Solder	Stainless Steel	Beryllium Copper	Female Socket Jack	SMA	500 V	Extended Insulation	Panel Mount Through Hole
Radiall USA, Inc. R125460000	18 GHz	Gold	165 °C	-65 ░C	Gold	500	1	Polytetrafluoroethylene (PTFE)	Gold	Flange	50 Ohms	Compression	Screw	Stainless Steel	Beryllium Copper	Female Socket Jack	SMA	500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 23.94
		10	$ 20.96
		25	$ 20.05
		50	$ 19.41
		100	$ 18.76
		250	$ 17.73
		500	$ 17.21

Description

General part information

R12546 Series

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Compression
