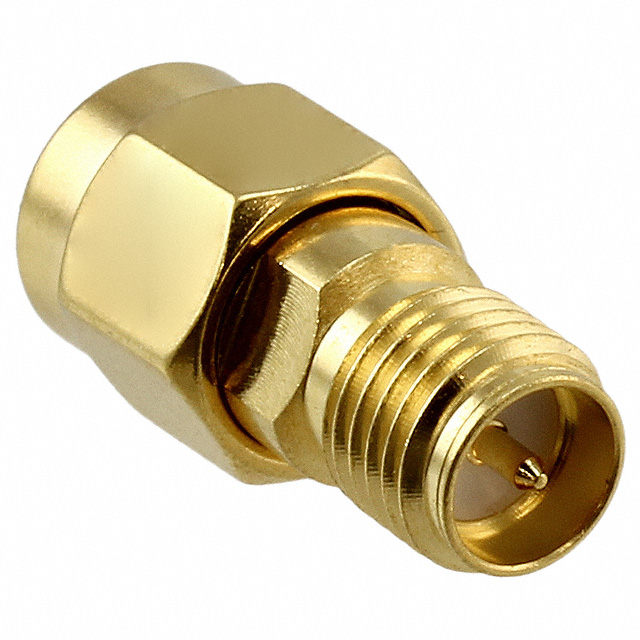

132171RP-RP

Active

Amphenol RF

CONN SMA ADAPTER 0HZ TO 18GHZ 50OHM ST PL GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA ADAPTER 0HZ TO 18GHZ 50OHM ST PL GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	132171RP-RP

Adapter Series	RP-SMA to RP-SMA
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	RP-SMA Jack, Male Pin
Convert To (Adapter End)	Female Socket, RP-SMA Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Style	Center Contact Plating	Center Contact Material	Dielectric Material	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Impedance	Mounting Type	Convert From (Adapter End)	Frequency - Max [Max]	Adapter Type	Conversion Type	Convert To (Adapter End)	Adapter Series
Amphenol RF 132171RP-RP	Straight	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Brass	-65 ░C	165 °C	Gold	50 Ohms	Free Hanging (In-Line)	RP-SMA Jack Male Pin	18 GHz	Plug to Jack	Same Series	Female Socket RP-SMA Plug	RP-SMA to RP-SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector RP-SMA Jack, Male Pin To RP-SMA Plug, Female Socket 50 Ohms
