M1AXK-4040K

Active

IDC CABLE - MSC40K/MC40F/X

Search across all available documentation for this part.

Active

IDC CABLE - MSC40K/MC40F/X

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

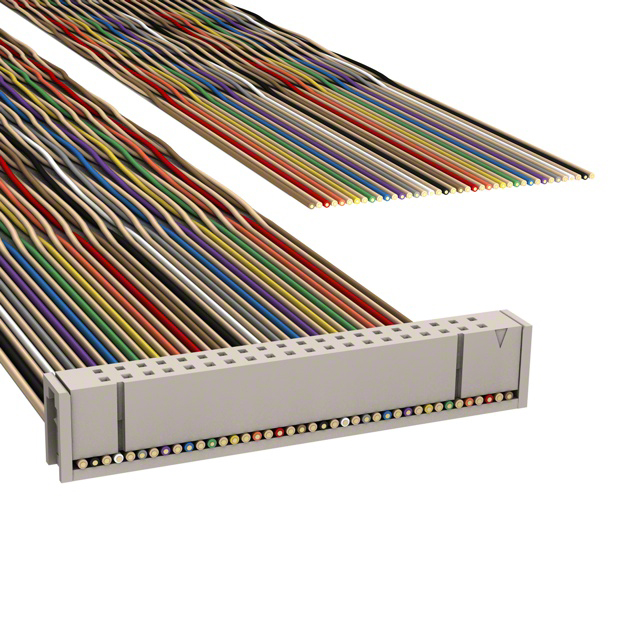

40 Position Cable Assembly Rectangular Socket to Cable 3.34' (1.02m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	M1AXK-4040K	M1AXK Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Length [x]	1.02 m	1.02 - 914.4 mm
Length [x]	3.34 ft	3 - 3.34 ft
Number of Positions	40	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

IDC CABLE - MSC24K/MC24G/X

Part	Contact Finish Thickness	Contact Finish Thickness	Shielding	Contact Finish	Number of Positions	Number of Rows	Pitch - Cable	Pitch - Cable	Cable Termination	Length [x]	Length [x]	Connector Type	Pitch - Connector	Pitch - Connector	Color	Number of Positions
3M M1AXK-2436J	0.76 Ám	30 Áin	Unshielded	Gold	24	2	0.05 "	1.27 mm	IDC	3 ft	914.4 mm	Socket to Cable	0.1 in	2.54 mm
3M M1AXK-3436J	0.76 Ám	30 Áin	Unshielded	Gold	34	2	0.05 "	1.27 mm	IDC	3 ft	914.4 mm	Socket to Cable	0.1 in	2.54 mm
3M M1AXK-2436R	0.76 Ám	30 Áin	Unshielded	Gold	24	2	0.05 "	1.27 mm	IDC	3 ft	914.4 mm	Socket to Cable	0.1 in	2.54 mm	Multiple, Ribbon
3M M1AXK-2640K	0.76 Ám	30 Áin	Unshielded	Gold	26	2	0.05 "	1.27 mm	IDC	3.34 ft	1.02 m	Socket to Cable	0.1 in	2.54 mm	Multiple, Twisted Pair (Flat)
3M M1AXK-1640K	0.76 Ám	30 Áin	Unshielded	Gold		2	0.05 "	1.27 mm	IDC	3.34 ft	1.02 m	Socket to Cable	0.1 in	2.54 mm	Multiple, Twisted Pair (Flat)	16
3M M1AXK-1036J	0.76 Ám	30 Áin	Unshielded	Gold	10	2	0.05 "	1.27 mm	IDC	3 ft	914.4 mm	Socket to Cable	0.1 in	2.54 mm
3M M1AXK-4040K	0.76 Ám	30 Áin	Unshielded	Gold	40	2	0.05 "	1.27 mm	IDC	3.34 ft	1.02 m	Socket to Cable	0.1 in	2.54 mm	Multiple, Twisted Pair (Flat)
3M M1AXK-5036R	0.76 Ám	30 Áin	Unshielded	Gold	50	2	0.05 "	1.27 mm	IDC	3 ft	914.4 mm	Socket to Cable	0.1 in	2.54 mm	Multiple, Ribbon
3M M1AXK-2636R	0.76 Ám	30 Áin	Unshielded	Gold	26	2	0.05 "	1.27 mm	IDC	3 ft	914.4 mm	Socket to Cable	0.1 in	2.54 mm	Multiple, Ribbon
3M M1AXK-1436J	0.76 Ám	30 Áin	Unshielded	Gold	14	2	0.05 "	1.27 mm	IDC	3 ft	914.4 mm	Socket to Cable	0.1 in	2.54 mm
