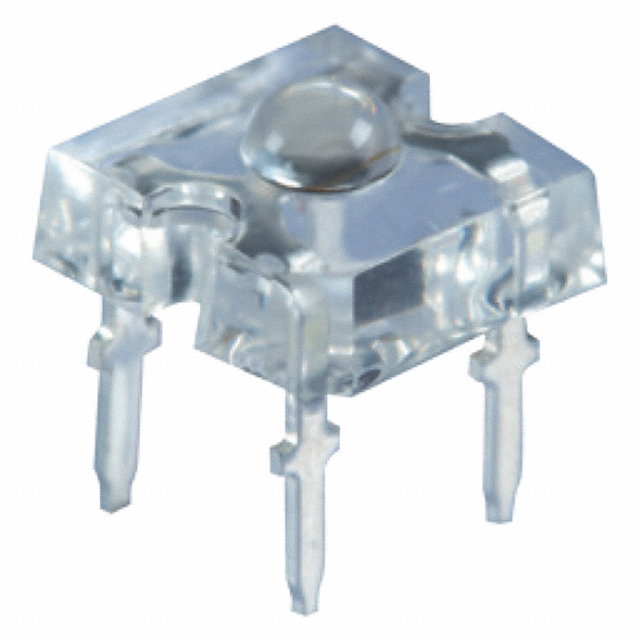

XSFBB983W

Active

SunLED

LED BLUE 470NM

Search across all available documentation for this part.

Active

SunLED

LED BLUE 470NM

Technical Specifications

Parameters and characteristics for this part

Specification	XSFBB983W

Color	Blue
Current - Max [Max]	30 mA
Current - Test	30 mA
Height - Seated (Max) [Max] [z]	4.65 mm
Height - Seated (Max) [Max] [z]	0.183 in
Lumens/Watt @ Current - Test	10 lm/W
Luminous Flux @ Current/Temperature	1 lm
Mounting Type	Through Hole
Package / Case	4-DIP
Package / Case	0.2 in
Package / Case	0.2 in
Size / Dimension [x]	7.62 mm
Size / Dimension [x]	0.3 in
Size / Dimension [y]	0.3 "
Size / Dimension [y]	7.62 mm
Thermal Resistance of Package [custom]	180 °C/W
Viewing Angle	70 °
Voltage - Forward (Vf) (Typ)	3.5 V
Wavelength	470 nm

Part	Lumens/Watt @ Current - Test	Color	Wavelength	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Package / Case	Luminous Flux @ Current/Temperature	Viewing Angle	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package [custom]	Current - Test
SunLED XSFBB983W	10 lm/W	Blue	470 nm	30 mA	0.3 "	7.62 mm	0.3 in	7.62 mm	Through Hole	4.65 mm	0.183 in	4-DIP	0.2 in	0.2 in	1 lm	70 °	3.5 V	180 °C/W	30 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	750	$ 0.41

General part information

LED Lighting Color - Blue 470nm (Typ) 4-DIP (0.200", 5.08mm)
