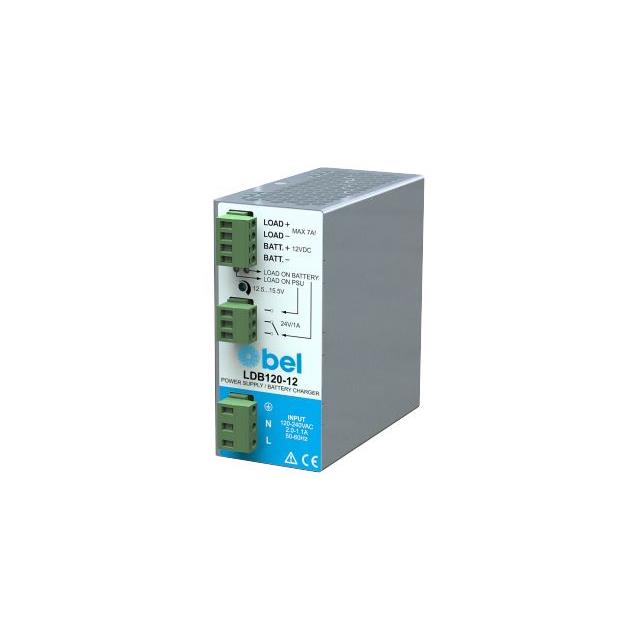

LDB120-12

Active

Bel Power Solutions

POWER SUPPLYLDB120-12AC-DC/DC-DC

Search across all available documentation for this part.

Active

Bel Power Solutions

POWER SUPPLYLDB120-12AC-DC/DC-DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

POWER SUPPLYLDB120-12AC-DC/DC-DC

Technical documentation and resources

No documents available

Specification	LDB120-12	LDB120 Series

Applications	Industrial Control, General Purpose	Industrial Control, General Purpose
Form	Din Rail	Din Rail
Height [z]	115.01 mm	115.01 mm
Height [z]	4.528 in	4.528 in
Input Connector	Screw Terminals	Screw Terminals
Power - Rated	120 W	120 W
Size / Dimension [x]	2.126 in	2.126 in
Size / Dimension [x]	54 mm	54 mm
Size / Dimension [y]	110 mm	110 mm
Size / Dimension [y]	4.331 in	4.331 in
Voltage - Output	12 V	12 - 24 V

Part	Applications	Voltage - Output	Form	Input Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Power - Rated
Bel Power Solutions LDB120-12	General Purpose, Industrial Control	12 V	Din Rail	Screw Terminals	110 mm	2.126 in	4.331 in	54 mm	115.01 mm	4.528 in	120 W
Bel Power Solutions LDB120-24	General Purpose, Industrial Control	24 V	Din Rail	Screw Terminals	110 mm	2.126 in	4.331 in	54 mm	115.01 mm	4.528 in	120 W
