ActiveTHE EVAL-1ED3890MX12M IS AN EVALUATION BOARD FOR EICEDRIVER™ X3 SINGLE-CHANNEL HIGHLY FLEXIBLE ISOLATED GATE DRIVER FAMILY
Deep-Dive with AI
Search across all available documentation for this part.
EVAL1ED3890MX12MTOBO1
ActiveTHE EVAL-1ED3890MX12M IS AN EVALUATION BOARD FOR EICEDRIVER™ X3 SINGLE-CHANNEL HIGHLY FLEXIBLE ISOLATED GATE DRIVER FAMILY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL1ED3890MX12MTOBO1 |
|---|---|
| Function | Gate Driver |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | 1ED3890Mx12M |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ED3890 Series

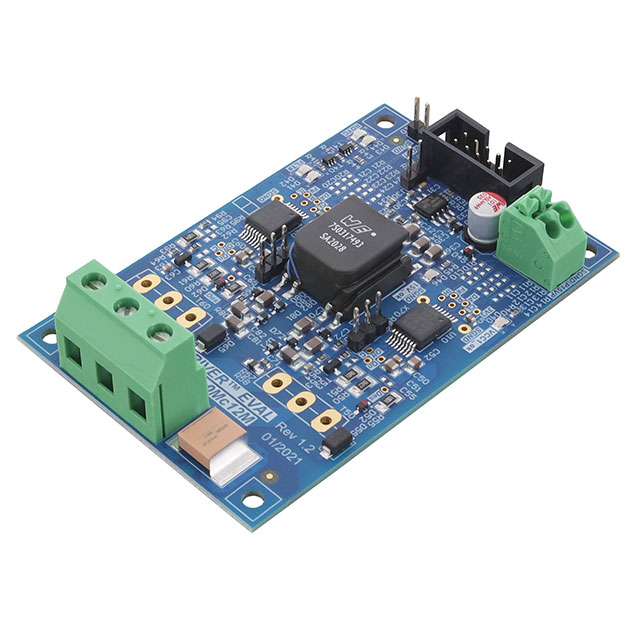

The EVAL-1ED3890MX12M is in half-bridge configuration with two gate driver ICs (1ED3890MX12M) to drive power switches such asIGBTs,MOSFETsandSiC MOSFETs. The switch type can be freely chosen. The board has a size of 85 x 85 x 15 mm without any power switch assembled. The board is best suited to leverage the highly configurable X3 Digital (1ED38xx) family with its rich feature-set. Configuration is performed via I2C bus. The evaluation board is recommended to be used with a companion microcontroller evaluation boardEVAL-1ED38X0DCTto optimize the configuration process.
