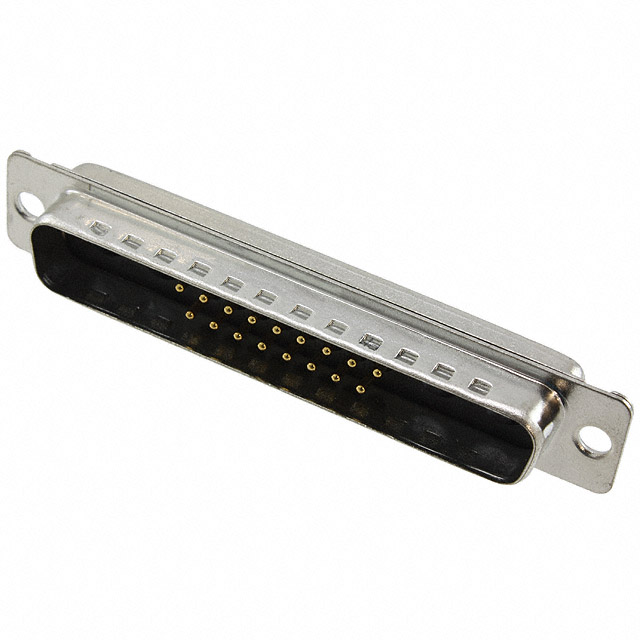

L717TWC21WA4P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 21POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717TWC21WA4P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 21POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717TWC21WA4P

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	16 µin
Contact Finish Thickness	0.41 µm
Contact Material	Brass
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	21
Number of Rows	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	21WA4, 4 (DC, C)
Voltage Rating	300 VDC

L717TWC21 Series

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Flange Feature	Color	Connector Style	Shell Size, Connector Layout	Mounting Type	Features	Contact Finish	Voltage Rating	Number of Rows	Current Rating (Amps)	Dielectric Material	Termination	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Backset Spacing	Backset Spacing	Material Flammability Rating
Amphenol ICC (Commercial Products) L717TWC21WA4PSYFM	Male Pins Plug	155 °C	-55 °C	21	16 µin	0.41 µm	Brass	Housing/Shell (Unthreaded)	Black	Combo D-Sub	21WA4 4 (DC C)	Panel Mount Through Hole	Grounding Indents	Gold	300 VDC	2	7.5 A	Thermoplastic	Solder
Amphenol ICC (Commercial Products) L717TWC21WA4PP2SYRM84	Male Pins Plug	155 °C	-55 °C		16 µin	0.41 µm	Brass	Female Screwlock (4-40) Mating Side	Black	Combo D-Sub	21WA4 4 (DC C)	Panel Mount Through Hole	Board Lock Grounding Indents	Gold	300 VDC	2	7.5 A	Thermoplastic	Solder	Signal and Power	17	4
Amphenol ICC (Commercial Products) L717TWC21WA4PMP3SV4RRM6	Male Pins Plug	155 °C	-55 °C		16 µin	0.41 µm	Brass	4-40 Board Side	Black	Combo D-Sub	21WA4 4 (DC C)	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets	Gold	300 VDC	2	7.5 A	Thermoplastic	Solder	Signal and Power	17	4	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717TWC21WA4PMP3SV4FRM6	Male Pins Plug	155 °C	-55 °C		16 µin	0.41 µm	Brass	Female Screwlock (4-40) Mating Side	Black	Combo D-Sub	21WA4 4 (DC C)	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets	Gold	300 VDC	2	7.5 A	Thermoplastic	Solder	Signal and Power	17	4	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717TWC21WA4PHSV4RRM6	Male Pins Plug	155 °C	-55 °C	21	16 µin	0.41 µm	Brass	4-40 Board Side	Black	Combo D-Sub	21WA4 4 (DC C)	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets	Gold	300 VDC	2	7.5 A	Thermoplastic	Solder				0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717TWC21WA4P	Male Pins Plug	155 °C	-55 °C	21	16 µin	0.41 µm	Brass	Housing/Shell (Unthreaded)	Black	Combo D-Sub	21WA4 4 (DC C)		Grounding Indents	Gold	300 VDC	2	7.5 A	Thermoplastic Glass Filled							UL94 V-0
Amphenol ICC (Commercial Products) L717TWC21WA4PP3SYRM54	Male Pins Plug	155 °C	-55 °C		16 µin	0.41 µm	Brass	4-40 Board Side	Black	Combo D-Sub	21WA4 4 (DC C)	Panel Mount Through Hole	Board Lock Grounding Indents	Gold	300 VDC	2	7.5 A	Thermoplastic	Solder	Signal and Power	17	4
Amphenol ICC (Commercial Products) L717TWC21WA4PHCSV	Male Pins Plug	155 °C	-55 °C	21	16 µin	0.41 µm	Brass	Housing/Shell (Unthreaded)	Black	Combo D-Sub	21WA4 4 (DC C)	Panel Mount Right Angle Through Hole	Grounding Indents	Gold	300 VDC	2		Thermoplastic	Solder	Coax Signal			0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717TWC21WA4PMP3SV3R	Male Pins Plug	155 °C	-55 °C		16 µin	0.41 µm	Brass	Board Side (M3)	Black	Combo D-Sub	21WA4 4 (DC C)	Panel Mount Right Angle Through Hole	Grounding Indents	Gold	300 VDC	2	7.5 A	Thermoplastic	Solder	Signal and Power	17	4	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717TWC21WA4P4R	Male Pins Plug	155 °C	-55 °C	21	16 µin	0.41 µm	Brass	Cable Side	Black	Combo D-Sub	21WA4 4 (DC C)		Grounding Indents	Gold	300 VDC	2	7.5 A	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.07
		10	$ 10.70
		100	$ 9.32
		1000	$ 7.30

Description

General part information

L717TWC21 Series

21 (17 + 4 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector
