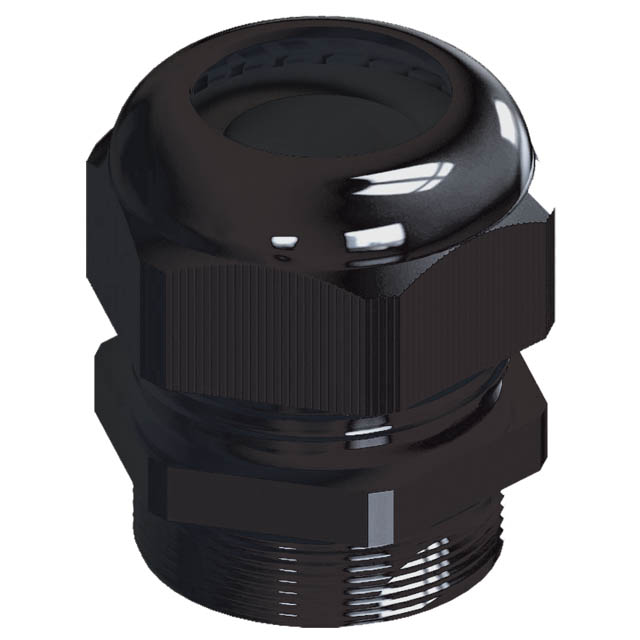

CG-NPT-3/4-2-BK

Active

Essentra Access Solutions

CABLE GLAND, 3/4" NPT, 14 MM, 18 MM, NYLON 6 (POLYAMIDE 6), BLACK, IP68

Search across all available documentation for this part.

Active

Essentra Access Solutions

CABLE GLAND, 3/4" NPT, 14 MM, 18 MM, NYLON 6 (POLYAMIDE 6), BLACK, IP68

Technical Specifications

Parameters and characteristics for this part

Specification	CG-NPT-3/4-2-BK

Color	Black
Includes	Sealing Gland, Sealing Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm
Outside Cable Diameter (Min) [Min] [diameter]	14 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.551 in
Panel Hole Size	1.067 "
Panel Hole Size	27.1 mm
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	3/4 NPT
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Includes	Thread Size	Panel Hole Size	Panel Hole Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]
Essentra Access Solutions CG-NPT-1-1-BK	12 mm	0.472 in	Cable Gland	O-Ring Sealing Gland Sealing Nut	1" NPT	1.35 in	34.3 mm	100 °C	-20 C	IP68 - Dust Tight Waterproof	0.709 in	18.01 mm	0.787 "	20 mm	Black	Polyamide (PA) Nylon
Essentra Access Solutions CG-NPT-3/4-2-BK	14 mm	0.551 in	Cable Gland	Sealing Gland Sealing Nut	3/4 NPT	1.067 "	27.1 mm	100 °C	-20 C	IP68 - Dust Tight Waterproof	0.591 in	15 mm	0.709 in	18.01 mm	Black	Polyamide (PA) Nylon
Essentra Access Solutions CG-NPT-3/4-1-BK	9 mm	0.354 in	Cable Gland	Sealing Gland Sealing Nut	3/4 NPT	1.067 "	27.1 mm	100 °C	-20 C	IP68 - Dust Tight Waterproof	0.591 in	15 mm	0.63 "	16 mm	Black	Polyamide (PA) Nylon
Essentra Access Solutions CG-NPT-1/2-1-BK			Cable Gland	Sealing Gland Sealing Nut	1/2" NPT		0.875 in 22.2 mm	100 °C	-20 C	IP68 - Dust Tight Waterproof	0.571 in	14.5 mm		0.354 in	Black	Polyamide (PA) Nylon	5 mm	0.197 in	7/8	9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon 3/4" NPT Black
