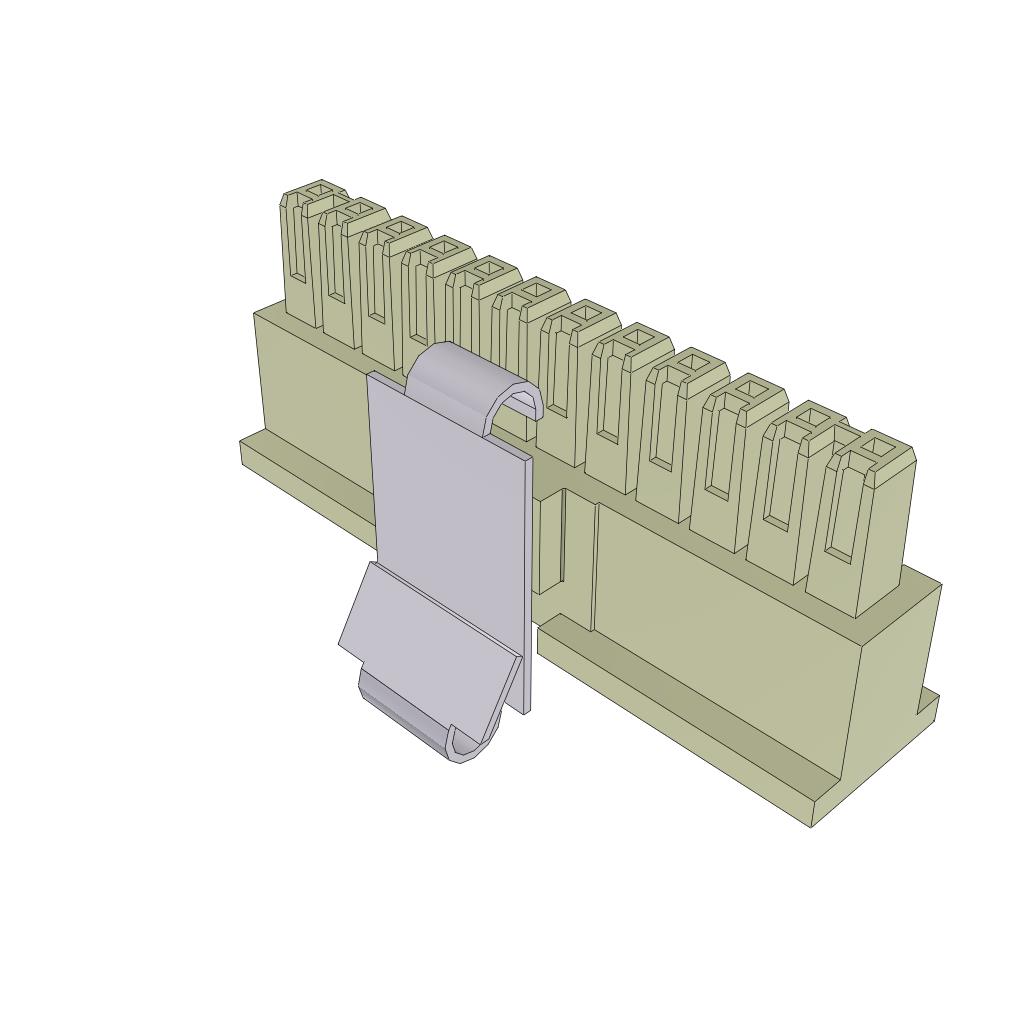

IPD1-12-S-K-M

Active

Samtec Inc.

CONN RCPT HSG 12POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT HSG 12POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Contact Termination	Number of Rows	Color	Row Spacing [x]	Row Spacing	Mounting Type	Features	Note	Connector Type	Fastening Type	Number of Positions	Insulation Material	Pitch [x]	Pitch [x]
Samtec Inc. IPD1-12-D-GP	Female Socket	Crimp	2	White	0.1 in	2.54 mm	Free Hanging (In-Line)	Guide Post	Contacts Not Included	Receptacle	Latch Lock	24	Polyamide (PA66) Nylon 6/6	2.54 mm	0.1 in
Samtec Inc. IPD1-12-D-GP-R	Female Socket	Crimp	2	White	0.1 in	2.54 mm	Free Hanging (In-Line)	Guide Post	Contacts Not Included	Receptacle	Latch Lock	24	Polyamide (PA66) Nylon 6/6	2.54 mm	0.1 in
Samtec Inc. IPD1-12-D-K-M	Female Socket	Crimp	2	White	0.1 in	2.54 mm	Free Hanging (In-Line)	Polarizing Key	Contacts Not Included	Receptacle	Latch Lock	24	Polyamide (PA66) Nylon 6/6	2.54 mm	0.1 in
Samtec Inc. IPD1-12-D-R	Female Socket	Crimp	2	White	0.1 in	2.54 mm	Free Hanging (In-Line)		Contacts Not Included	Receptacle	Latch Lock	24	Polyamide (PA66) Nylon 6/6	2.54 mm	0.1 in
Samtec Inc. IPD1-12-S-K-M	Female Socket	Crimp	1	White			Free Hanging (In-Line)	Polarizing Key	Contacts Not Included	Receptacle	Latch Lock	12	Polyamide (PA66) Nylon 6/6	2.54 mm	0.1 in
Samtec Inc. IPD1-12-D-M	Female Socket	Crimp	2	White	0.1 in	2.54 mm	Free Hanging (In-Line)		Contacts Not Included	Receptacle	Latch Lock	24	Polyamide (PA66) Nylon 6/6	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	17	$ 3.73
