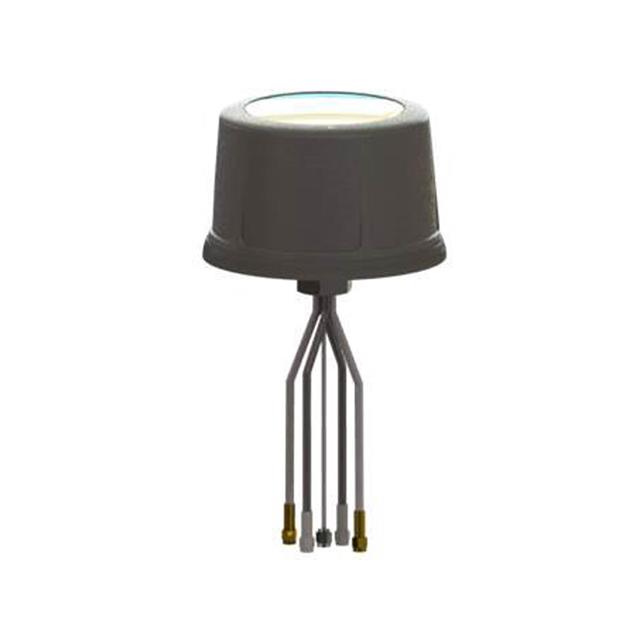

VHP69273B22G-518A
ActiveTE Connectivity Raychem Cable Protection
ANTENNA MIMO 6.5DBI GAIN 960MHZ/2700MHZ/5900MHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VHP69273B22G-518A
ActiveTE Connectivity Raychem Cable Protection
ANTENNA MIMO 6.5DBI GAIN 960MHZ/2700MHZ/5900MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VHP69273B22G-518A |
|---|---|
| Antenna Type | Dome |
| Applications | GPS, Wi-Fi, LTE |
| Features | 5.18 m |
| Frequency (Center/Band) | 2.2 GHz, 2.5 GHz, 1.575 GHz, 829 MHz, 5.4 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 1.578 GHz, 2.7 GHz, 5.9 GHz |
| Frequency Range [Min] | 2.3 GHz, 1.7 GHz, 4.9 GHz, 1.572 GHz, 698 MHz |
| Gain | 4.1 dBi, 6.5 dBi, 5.9 dBi, 27 dB, 6.2 dBi |
| Height (Max) | 86.36 mm |
| Height (Max) [Max] | 3.4 in |
| Ingress Protection | IP67 |
| Number of Bands [custom] | 5 |
| Power - Max [Max] | 50 W |
| RF Family/Standard | Navigation, WiFi, Cellular |
| Termination | RP-SMA Male (2), SMA Male (3) |
| VSWR | 1.5, 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 293.04 | |
| 10 | $ 280.65 | |||
| 25 | $ 274.46 | |||
Description
General part information
VHP69273 Series
829MHz, 1.575GHz, 2.2GHz, 2.5GHz, 5.4GHz GPS, LTE, Wi-Fi Dome RF Antenna 698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.7GHz ~ 2.7GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz 4.1dBi, 27dB, 5.9dBi, 6.2dBi, 6.5dBi SMA Male (3), RP-SMA Male (2) Panel Mount
