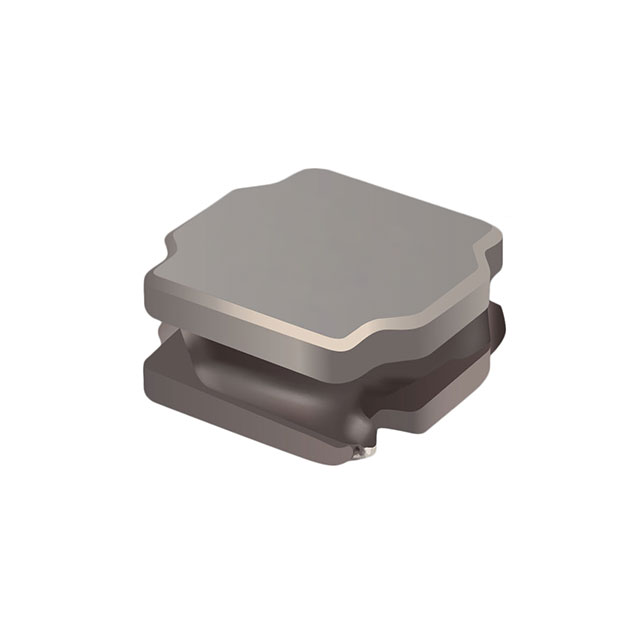

SRN8040TA-151M
ActiveBourns Inc.
POWER INDUCTOR (SMD), 150 ΜH, 980 MA, SEMISHIELDED, 1.2 A, SRN8040TA SERIES
Deep-Dive with AI
Search across all available documentation for this part.
SRN8040TA-151M
ActiveBourns Inc.
POWER INDUCTOR (SMD), 150 ΜH, 980 MA, SEMISHIELDED, 1.2 A, SRN8040TA SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRN8040TA-151M |
|---|---|
| Current - Saturation (Isat) | 1.2 A |
| Current Rating (Amps) | 0.98 A |
| DC Resistance (DCR) | 410 mOhm |
| Frequency - Self Resonant | 7 MHz |
| Height - Seated (Max) | 4.5 mm |
| Height - Seated (Max) [Max] | 0.177 " |
| Inductance | 150 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 1 MHz, 10 |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 0.315 in |
| Size / Dimension [y] | 8 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| 10 | $ 0.62 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 0.73 | ||
| 10 | $ 0.62 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.44 | |||
| 500 | $ 0.37 | |||
| Tape & Reel (TR) | 1000 | $ 0.33 | ||
| 3000 | $ 0.32 | |||
| 5000 | $ 0.31 | |||
| 10000 | $ 0.30 | |||
| 25000 | $ 0.29 | |||
Description
General part information
SRN8040TA Series
150 µH Shielded Drum Core, Wirewound Inductor 980 mA 410mOhm Nonstandard
