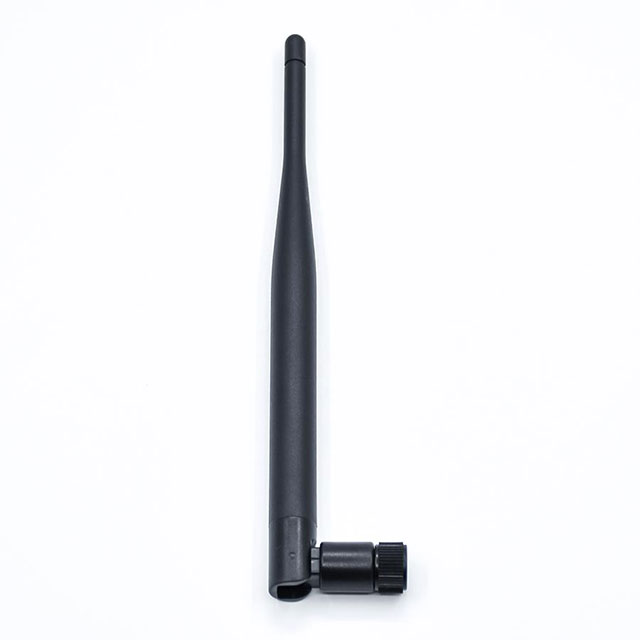

RST-W5C9-195013-22M-GE-001
ActiveRaltron Electronics
RF ANT 2.4GHZ/5.8GHZ WHIP TILT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RST-W5C9-195013-22M-GE-001
ActiveRaltron Electronics
RF ANT 2.4GHZ/5.8GHZ WHIP TILT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RST-W5C9-195013-22M-GE-001 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | Bluetooth, Wi-Fi, 802.15.4 |
| Frequency (Center/Band) | 5.8 GHz, 2.4 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.85 GHz, 2.5 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz |
| Gain | 5 dBi, 4.5 dBi |
| Height (Max) [Max] | 195 mm |
| Height (Max) [Max] | 7.677 in |
| Ingress Protection | IP65 |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.14 | |
| 50 | $ 4.37 | |||
| 100 | $ 3.79 | |||
| 1000 | $ 2.72 | |||
Description
General part information
RST-W5C9 Series
2.4GHz, 5.8GHz 802.15.4, Bluetooth, Wi-Fi Whip, Tilt RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz 4.5dBi, 5dBi SMA Male Connector Mount
