DH-20G50009

Active

Cvilux USA

COAX CBL MHF1 TO SMA 1.9"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DH-20G50009

Active

Cvilux USA

COAX CBL MHF1 TO SMA 1.9"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.00
		10	$ 1.70
		30	$ 1.58
		50	$ 1.52
		100	$ 1.45
		250	$ 1.36
		500	$ 1.29
		1000	$ 1.23
		2500	$ 1.15

Description

General part information

DH-20G50 Series

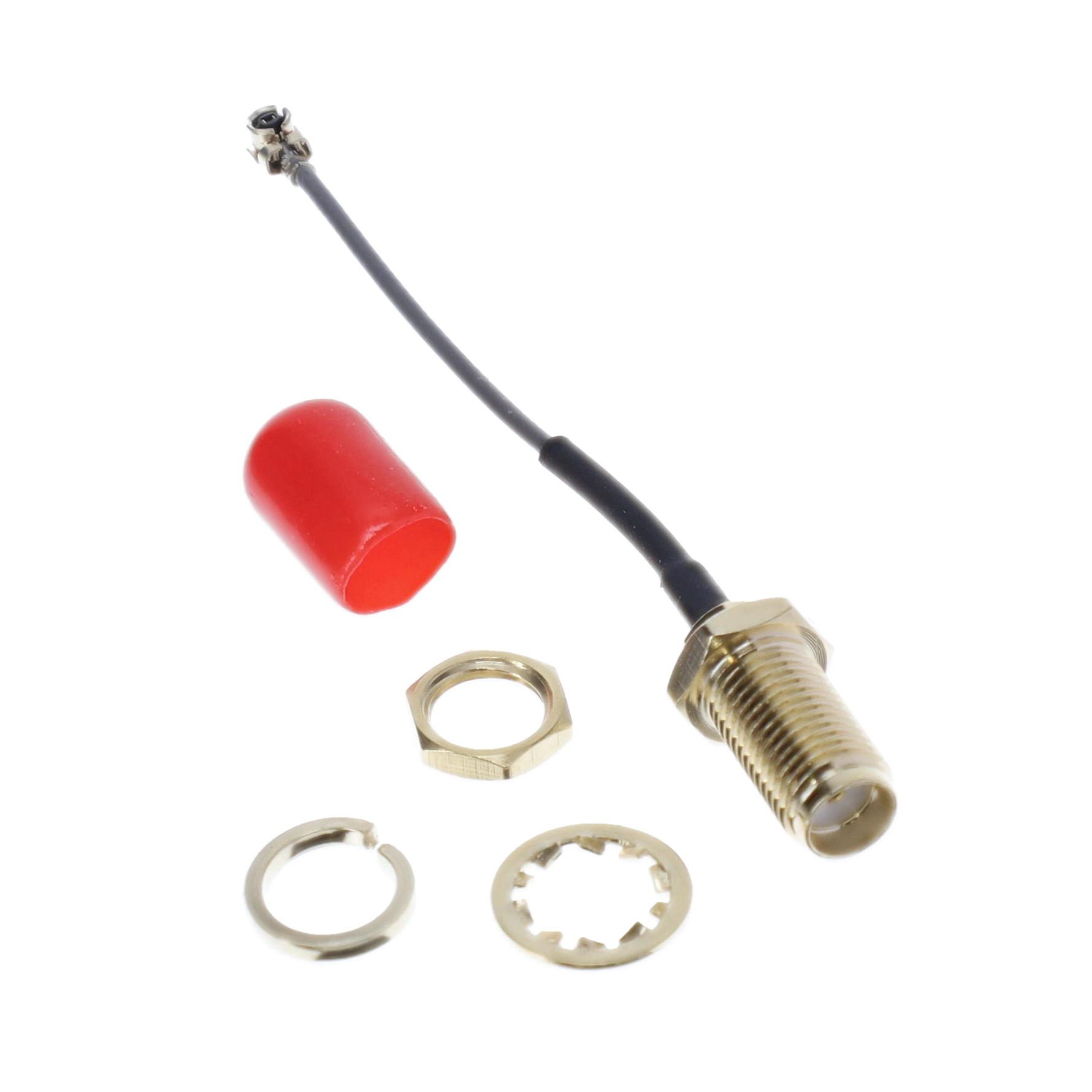

Cable Assembly Coaxial I-PEX MHF1 to SMA 1.969" (50.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DH-20G50009	DH-20G50 Series

1st Connector	I-PEX MHF1 Plug, Right Angle	IPEX MHF1 Plug, Right Angle, I-PEX MHF1 Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	SMA Jack	SMA Jack, SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female, Male
Color	Gray	Gray, Brown
Length [x]	1.969 in	1.969 - 5.906 "
Length [x]	50 mm	0.1 - 150 mm
Overall Impedance	50 Ohms	50 Ohms
Style	I-PEX MHF1 to SMA	IPEX MHF1 to SMA, I-PEX MHF1 to SMA

DH-20G50 Series

CBL ASY IPEX MHF1-SMA P-J 5.906"

Part	Style	Color	2nd Connector	Length [x]	Length [x]	1st Contact Gender	2nd Connector Mounting Type	Overall Impedance	1st Connector Mounting Type	1st Connector	2nd Contact Gender
Cvilux USA DH-20G50011	IPEX MHF1 to SMA	Gray	SMA Jack	150 mm	5.906 "	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	IPEX MHF1 Plug, Right Angle	Female
Cvilux USA DH-20G50015	IPEX MHF1 to SMA	Brown	SMA Jack	50 mm	1.969 in	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	IPEX MHF1 Plug, Right Angle	Female
Cvilux USA DH-20G50017	IPEX MHF1 to SMA	Brown	SMA Plug	150 mm	5.906 "	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	IPEX MHF1 Plug, Right Angle	Male
Cvilux USA DH-20G50009	I-PEX MHF1 to SMA	Gray	SMA Jack	50 mm	1.969 in	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	I-PEX MHF1 Plug, Right Angle	Female
Cvilux USA DH-20G50012	I-PEX MHF1 to SMA, IPEX MHF1 to SMA	Gray	SMA Jack	50 mm	1.969 in	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	I-PEX MHF1 Plug, Right Angle, IPEX MHF1 Plug, Right Angle	Female
Cvilux USA DH-20G50016	IPEX MHF1 to SMA	Brown	SMA Jack	0.1 m	3.937 in	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	IPEX MHF1 Plug, Right Angle	Female
Cvilux USA DH-20G50013	IPEX MHF1 to SMA	Gray	SMA Jack	0.1 m	3.937 in	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	IPEX MHF1 Plug, Right Angle	Female
Cvilux USA DH-20G50010	IPEX MHF1 to SMA	Gray	SMA Jack	0.1 m	3.937 in	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	IPEX MHF1 Plug, Right Angle	Female
Cvilux USA DH-20G50014	IPEX MHF1 to SMA	Gray	SMA Jack	150 mm	5.906 "	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	IPEX MHF1 Plug, Right Angle	Female
