CCS25-S8-M

Active

Panduit Corp

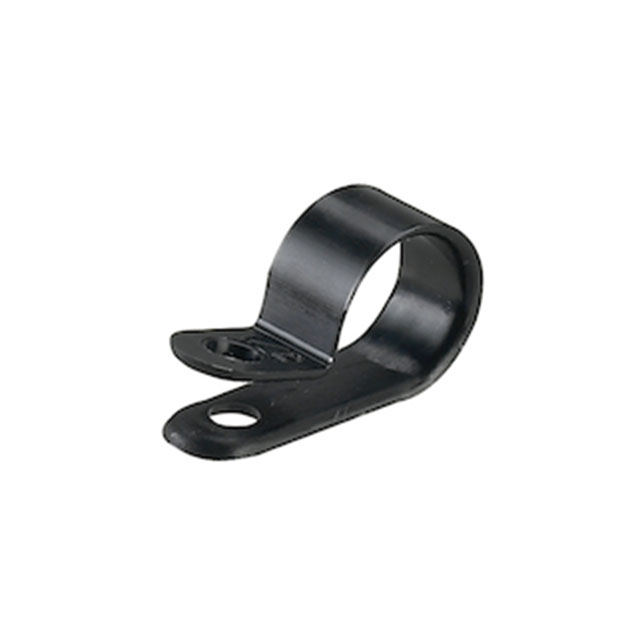

FIXED DIA CLAMP, .25" (6.4MM) BUNDLE, # ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panduit Corp

FIXED DIA CLAMP, .25" (6.4MM) BUNDLE, # ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CCS25-S8-M	CCS25 Series

Bundle Center to Mounting Center	0.41 in	0.41 in
Bundle Center to Mounting Center	10.41 mm	10.41 mm
Color	Natural	Natural
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2
Material Thickness	0.05 in	0.05 in
Material Thickness	1.27 mm	1.27 mm
Mounting Type	Fastener	Fastener
Opening Size	6.35 mm	6.35 mm
Opening Size [diameter]	0.25 in	0.25 in
Panel Hole Size	-	5.16 mm
Panel Hole Size	-	0.203 in
Panel Hole Size [diameter]	4.24 mm	4.24 mm
Panel Hole Size [diameter]	0.167 in	0.167 in
Screw Size	M4	M5, M4
Screw Size	#8	#10, #8
Type	Clip, P-Type	Clip, P-Type
Width	9.4 mm	9.4 mm
Width [x]	0.37 in	0.37 in

FIXED DIAMETER CABLE CLAMP ROHS COMPLIANT: YES

Part	Width [x]	Width	Type	Opening Size [diameter]	Opening Size	Panel Hole Size	Panel Hole Size	Mounting Type	Material Thickness	Material Thickness	Color	Screw Size	Screw Size	Material Flammability Rating	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Material	Panel Hole Size [diameter]	Panel Hole Size [diameter]
Panduit Corp CCS25-S10-M	0.37 in	9.4 mm	Clip, P-Type	0.25 in	6.35 mm	5.16 mm	0.203 in	Fastener	0.05 in	1.27 mm	Natural	M5	#10	UL94 V-2	0.41 in	10.41 mm	Polyamide (PA66), Nylon 6/6
Panduit Corp CCS25-S8-M	0.37 in	9.4 mm	Clip, P-Type	0.25 in	6.35 mm			Fastener	0.05 in	1.27 mm	Natural	M4	#8	UL94 V-2	0.41 in	10.41 mm	Polyamide (PA66), Nylon 6/6	4.24 mm	0.167 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, P-Type Natural Fastener 0.250" (6.35mm)
