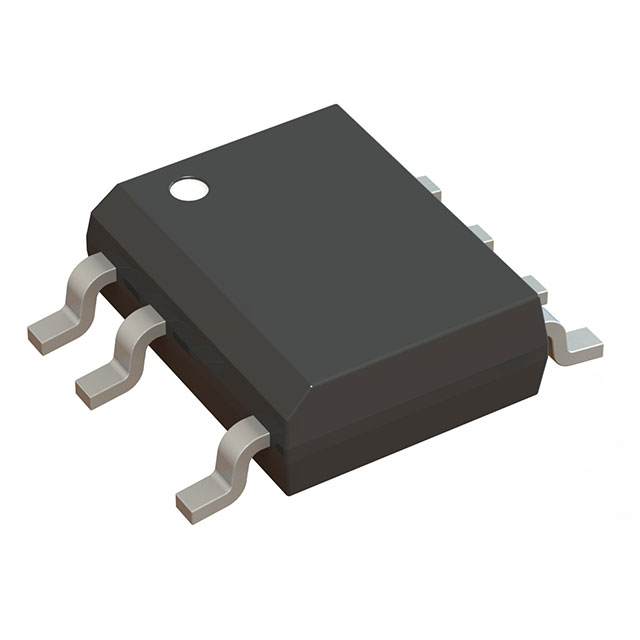

HF01B04DS-LF

Active

Monolithic Power Systems Inc.

IC REG CTRLR FLYBK PWM 8SOIC

Search across all available documentation for this part.

Active

Monolithic Power Systems Inc.

IC REG CTRLR FLYBK PWM 8SOIC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HF01B04DS-LF	HF01 Series

Fault Protection	Over Voltage, Over Temperature, Over Load	Over Voltage, Over Temperature, Over Load
Frequency - Switching [Max]	150 kHz	150 kHz
Internal Switch(s)	True	True
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Isolation	Isolated	Isolated
Package / Case	8-SOIC	8-SOIC, 8-DIP
Package / Case	0.154 in	0.154 - 7 in
Package / Case	-	7.62 mm
Package / Case [custom]	7	7
Package / Case [custom]	3.9 mm	3.9 mm
Power (Watts)	23 W	23 - 45 W
Supplier Device Package	8-SOIC-7B	8-SOIC-7B, 8-PDIP-7B
Topology	Flyback	Flyback
Voltage - Breakdown	700 V	700 V
Voltage - Start Up	11.8 V	11.8 V
Voltage - Supply (Vcc/Vdd) [Max]	20 V	20 V
Voltage - Supply (Vcc/Vdd) [Min]	8 V	8 V

IC OFFLINE SWITCH FLYBACK 8SOIC

Part	Power (Watts)	Output Isolation	Voltage - Start Up	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Frequency - Switching [Max]	Voltage - Breakdown	Topology	Mounting Type	Fault Protection	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case	Package / Case
Monolithic Power Systems Inc. HF01B04DS-LF-Z	23 W	Isolated	11.8 V	20 V	8 V	85 °C	-40 °C	8-SOIC-7B	150 kHz	700 V	Flyback	Surface Mount	Over Load, Over Temperature, Over Voltage	7	8-SOIC	3.9 mm	0.154 in
Monolithic Power Systems Inc. HF01B04DP-LF	23 W	Isolated	11.8 V	20 V	8 V	85 °C	-40 °C	8-PDIP-7B	150 kHz	700 V	Flyback	Through Hole	Over Load, Over Temperature, Over Voltage		8-DIP		0.3 in, 7 Leads	7.62 mm
Monolithic Power Systems Inc. HF01B04DS-LF	23 W	Isolated	11.8 V	20 V	8 V	85 °C	-40 °C	8-SOIC-7B	150 kHz	700 V	Flyback	Surface Mount	Over Load, Over Temperature, Over Voltage	7	8-SOIC	3.9 mm	0.154 in
Monolithic Power Systems Inc. HF01B02DP-LF	33 W	Isolated	11.8 V	20 V	8 V	85 °C	-40 °C	8-PDIP-7B	150 kHz	700 V	Flyback	Through Hole	Over Load, Over Temperature, Over Voltage		8-DIP		0.3 in, 7 Leads	7.62 mm
Monolithic Power Systems Inc. HF01B01DP-LF	45 W	Isolated	11.8 V	20 V	8 V	85 °C	-40 °C	8-PDIP-7B	150 kHz	700 V	Flyback	Through Hole	Over Load, Over Temperature, Over Voltage		8-DIP		0.3 in, 7 Leads	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Converter Offline Flyback Topology Up to 150kHz 8-SOIC-7B
