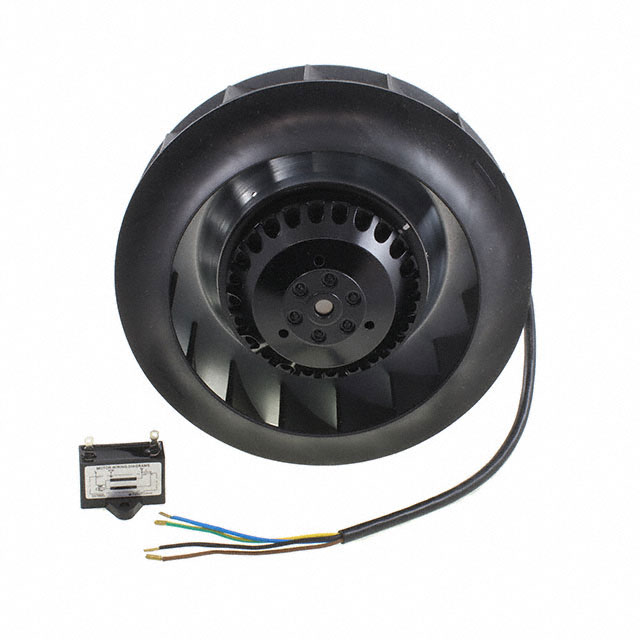

UF180(55)APA23-H1C4A

Active

Mechatronics Fan Group

FAN IMP MTRZD 182X55MM 230VAC

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN IMP MTRZD 182X55MM 230VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 76.56

General part information

Fan Motorized Impellers 230VAC Round - 182mm Dia Ball 264.6 CFM (7.41m³/min) 4 Wire Leads

Technical documentation and resources

Specification	UF180(55)APA23-H1C4A	UF180 Series

Air Flow	264.6 CFM	264.6 - 290 CFM
Air Flow	7.41 m³/min	7.41 - 8.12 m³/min
Approval Agency	CE, ETL, TUV, cETL	CE, ETL, TUV, cETL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.34 A	0.34 - 0.7 A
Fan Type	Motorized Impellers	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material - Frame	Aluminum	Aluminum
Noise	67 dB	67 dB
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	78 W	78 W
RPM	2800 RPM	2800 RPM
Size / Dimension	Round	Round
Size / Dimension [diameter]	182 mm	182 mm
Static Pressure	1.4 in H2O	1.4 in H2O
Static Pressure	348.7 Pa	348.7 Pa
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	230 VAC	115 - 230 VAC
Weight	2.6 lbs	2.6 - 2.7 lbs
Weight	1.2 kg	1.2 kg
Width [y]	55 mm	55 mm

Part	Air Flow	Air Flow	Power (Watts)	Voltage - Rated	Material - Frame	Material - Blade	Width [y]	Size / Dimension [diameter]	Size / Dimension	Features	Noise	Approval Agency	Termination	RPM	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Bearing Type	Static Pressure	Static Pressure	Weight	Weight	Fan Type
Mechatronics Fan Group UF180(55)APA23-H2C2A	290 CFM	8.12 m³/min	78 W	230 VAC	Aluminum	Nylon, Polyamide (PA)	55 mm	182 mm	Round	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	67 dB	CE, cETL, ETL, TUV	4 Wire Leads	2800 RPM	50 °C	-40 °C	-40 °C	50 °C	0.34 A	Ball	1.4 in H2O	348.7 Pa	1.2 kg	2.7 lbs	Motorized Impellers
Mechatronics Fan Group UF180(55)APA23-H1C4A	264.6 CFM	7.41 m³/min	78 W	230 VAC	Aluminum	Nylon, Polyamide (PA)	55 mm	182 mm	Round	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	67 dB	CE, cETL, ETL, TUV	4 Wire Leads	2800 RPM	50 °C	-40 °C	-40 °C	50 °C	0.34 A	Ball	1.4 in H2O	348.7 Pa	1.2 kg	2.6 lbs	Motorized Impellers
Mechatronics Fan Group UF180(55)APA12-H2C2A	290 CFM	8.12 m³/min	78 W	115 VAC	Aluminum	Nylon, Polyamide (PA)	55 mm	182 mm	Round	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	67 dB	CE, cETL, ETL, TUV	4 Wire Leads	2800 RPM	50 °C	-40 °C	-40 °C	50 °C	0.7 A	Ball	1.4 in H2O	348.7 Pa	1.2 kg	2.7 lbs	Motorized Impellers
