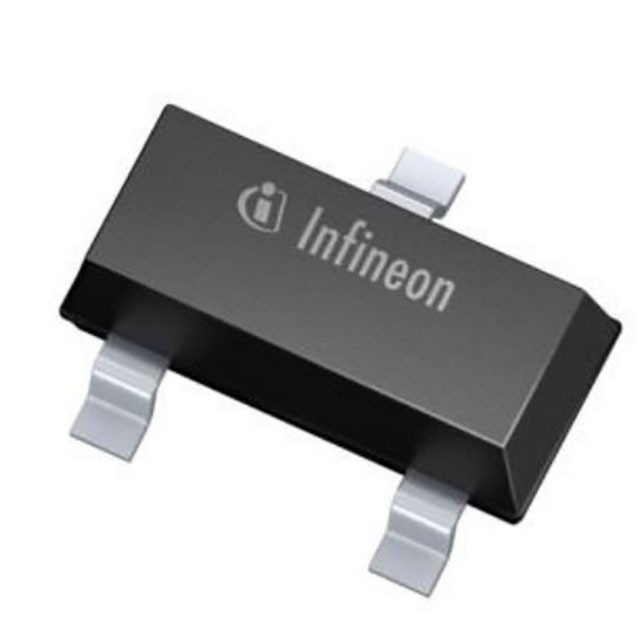

SN7002IXTSA1

Active

Infineon Technologies

MOSFET, N-CH, 60V, 0.2A, SOT-23 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Infineon Technologies

MOSFET, N-CH, 60V, 0.2A, SOT-23 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SN7002IXTSA1

Current - Continuous Drain (Id) @ 25°C	200 mA
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	0.9 nC
Input Capacitance (Ciss) (Max) @ Vds	32 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power Dissipation (Max)	360 mW
Rds On (Max) @ Id, Vgs	5 Ohm
Supplier Device Package	PG-SOT-23-3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	1.8 V

Part	Power Dissipation (Max)	Drain to Source Voltage (Vdss)	Mounting Type	Supplier Device Package	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs [Max]	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Technology	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Vgs(th) (Max) @ Id
Infineon Technologies SN7002IXTSA1	360 mW	60 V	Surface Mount	PG-SOT-23-3	5 Ohm	32 pF	0.9 nC	200 mA	-55 °C	150 °C	SC-59 SOT-23-3 TO-236-3	MOSFET (Metal Oxide)	20 V	4.5 V 10 V	N-Channel	1.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 60 V 200mA (Ta) 360mW (Ta) Surface Mount PG-SOT-23-3
