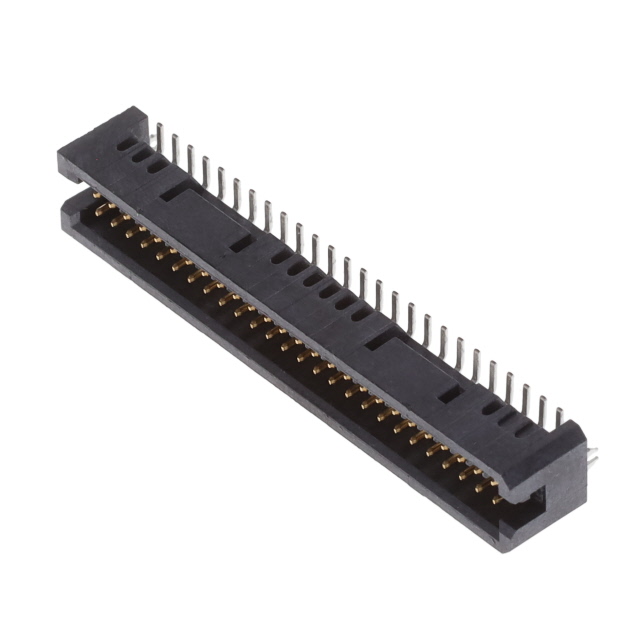

TFML-126-02-S-D-LC

Active

Samtec Inc.

CONN HEADER SMD 52POS 1.27MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER SMD 52POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	TFML-126-02-S-D-LC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.134 "
Contact Length - Mating	3.39 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	52
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

Part	Insulation Color	Contact Finish - Post	Insulation Material	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Type	Pitch - Mating	Pitch - Mating	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Contact Shape	Shrouding	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Features	Connector Type	Fastening Type	Number of Rows	Material Flammability Rating	Mounting Type	Contact Material	Contact Length - Post [x]	Contact Length - Post
Samtec Inc. TFML-126-02-L-D-A	Black	Tin	Liquid Crystal Polymer (LCP)	Gold	0.134 "	3.39 mm	5.6 mm	0.22 in	Male Pin	0.05 in	1.27 mm	52	0.05 in	1.27 mm	-55 °C	125 °C	Board to Board Cable	Square	Shrouded - 4 Wall	All	15 µin	0.38 µm	Solder	Board Guide	Header	Friction Lock	2	UL94 V-0	Surface Mount	Phosphor Bronze
Samtec Inc. TFML-126-02-S-D-LC	Black	Tin	Liquid Crystal Polymer (LCP)	Gold	0.134 "	3.39 mm	5.6 mm	0.22 in	Male Pin	0.05 in	1.27 mm	52	0.05 in	1.27 mm	-55 °C	125 °C	Board to Board Cable	Square	Shrouded - 4 Wall	All	30 Áin	0.76 Ám	Solder		Header	Friction Lock	2	UL94 V-0	Surface Mount	Phosphor Bronze
Samtec Inc. TFML-126-01-S-D	Black	Tin	Liquid Crystal Polymer (LCP)	Gold	0.134 "	3.39 mm	5.6 mm	0.22 in	Male Pin	0.05 in	1.27 mm	52	0.05 in	1.27 mm	-55 °C	125 °C	Board to Board Cable	Square	Shrouded - 4 Wall	All	30 Áin	0.76 Ám	Solder		Header	Friction Lock	2	UL94 V-0	Through Hole	Phosphor Bronze	0.075 in	1.91 mm
