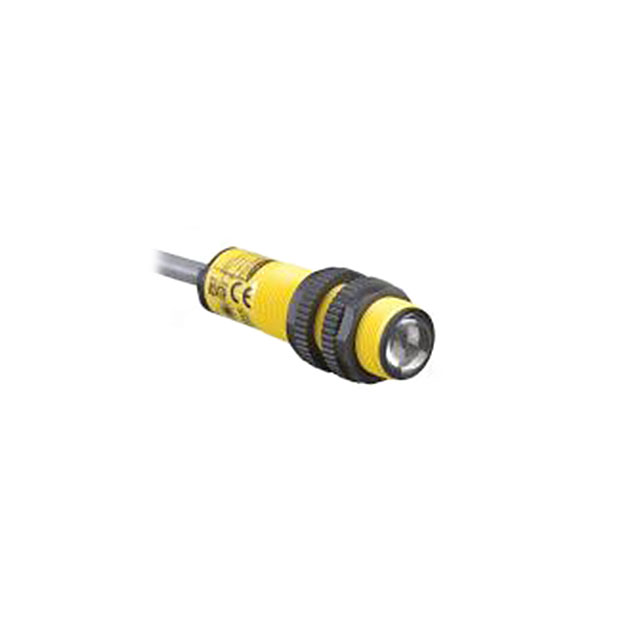

S186ELDQ

Active

BANNER ENGINEERING

PHOTO SEN LASER EMITTER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTO SEN LASER EMITTER

Technical Specifications

Parameters and characteristics for this part

Specification	S186ELDQ

Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67
Light Source	LED
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Sensing Distance	15 m
Sensing Distance	590.551 in
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Method	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Sensing Distance	Sensing Distance	Connection Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING S186ELDQ	Through-Beam	-10 °C	50 °C	15 m	590.551 in	Connector	30 VDC	10 VDC	LED	NEMA 6P IEC IP67
BANNER ENGINEERING S186EQ	Through-Beam			20 m	787.402 in	Connector	30 VDC	10 VDC	Infrared LED	IEC IP67 IEC IP69K NEMA 6P	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 275.00
Newark	Each	1	$ 280.00

General part information

Through-Beam Optical Sensor 590.551" (15m)
